FKR604
Fuselage 604 - FORMULA KITE IKA




The fuselage of Sabfoil Racing Division
IKA registered 2020/2024

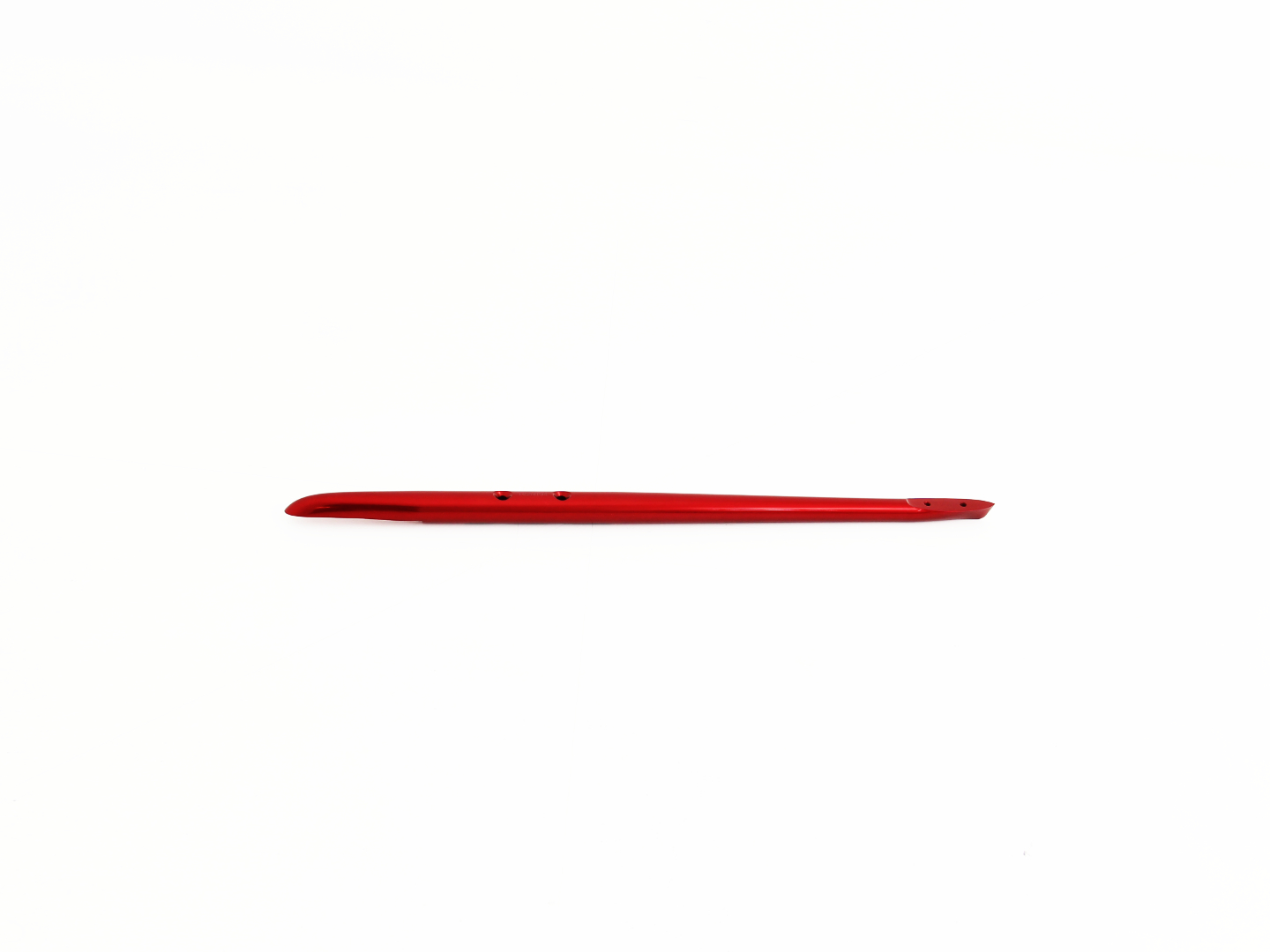

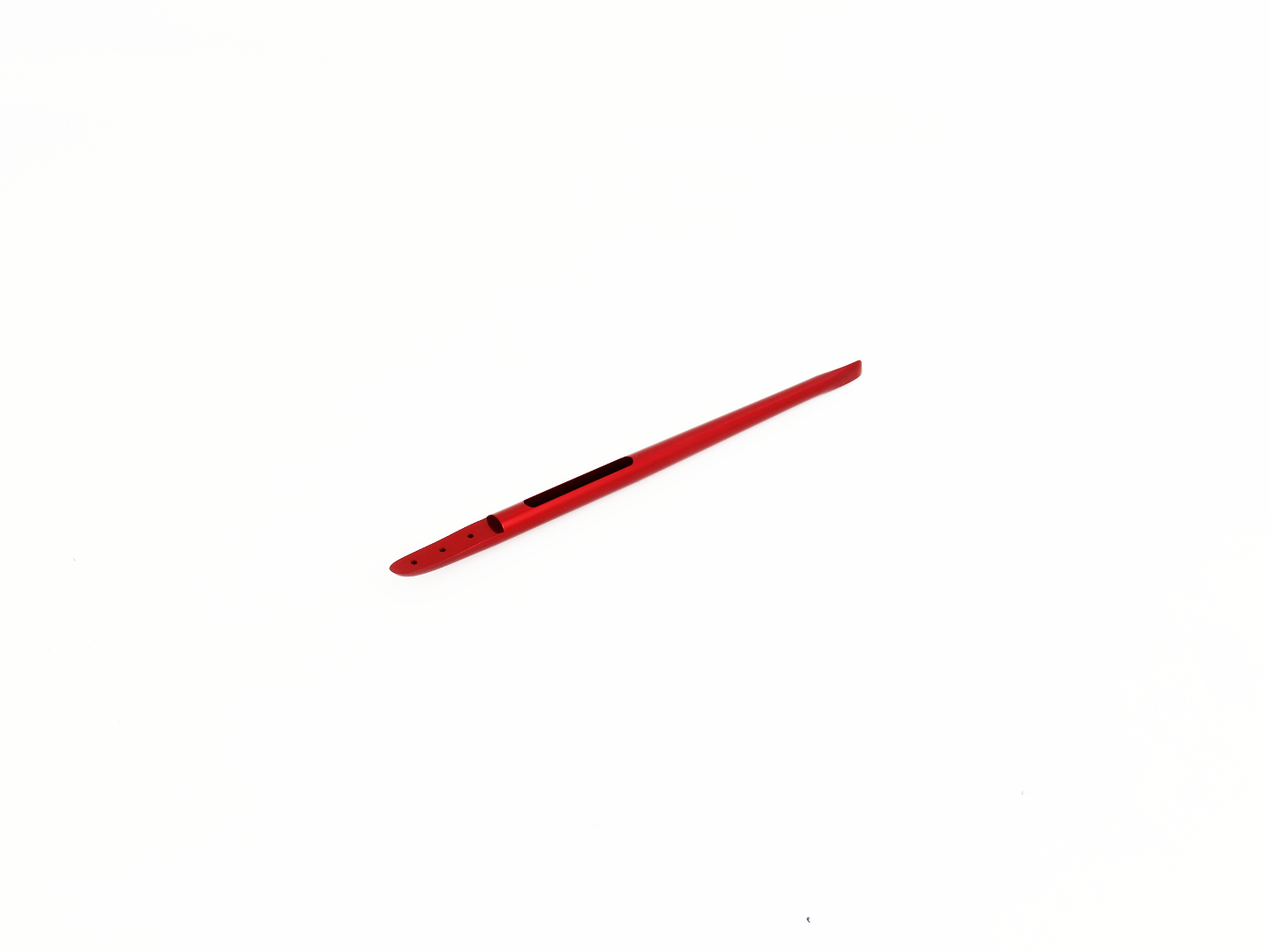

The fuselage of Sabfoil Racing Division. The shape is designed to increase performance for kitesurfing while racing.
The FKR604 is CNC shaped to obtain the smoothest possible surface and subjected to hard elox 50um surface treatment. This fuselage represents the state of the art in aluminum milling.
IKA registered 2020/2024
FITS ONLY WITH FRONT WING W670
Always keep the threaded holes clean and lubricate them often using lithium grease (code MHW033) to avoid and prevent oxidation and corrosion due to seawater. Always clean your fuselage with fresh water after use
Dimensions & Advanced specs
Fuselage - Length | 603,6 mm |
---|---|
Fuselage - Weight [±5%] | 615 g |
Stabilizer Incidence Angle | -1,5° |
Mast Connection System | 2021 |
Front Wing Connection Type |
Content
FKR604 - Fuselage 604 - FORMULA KITE IKA | 1 |
---|---|
MH127 - Hardware Kit FKR604 | 1 |

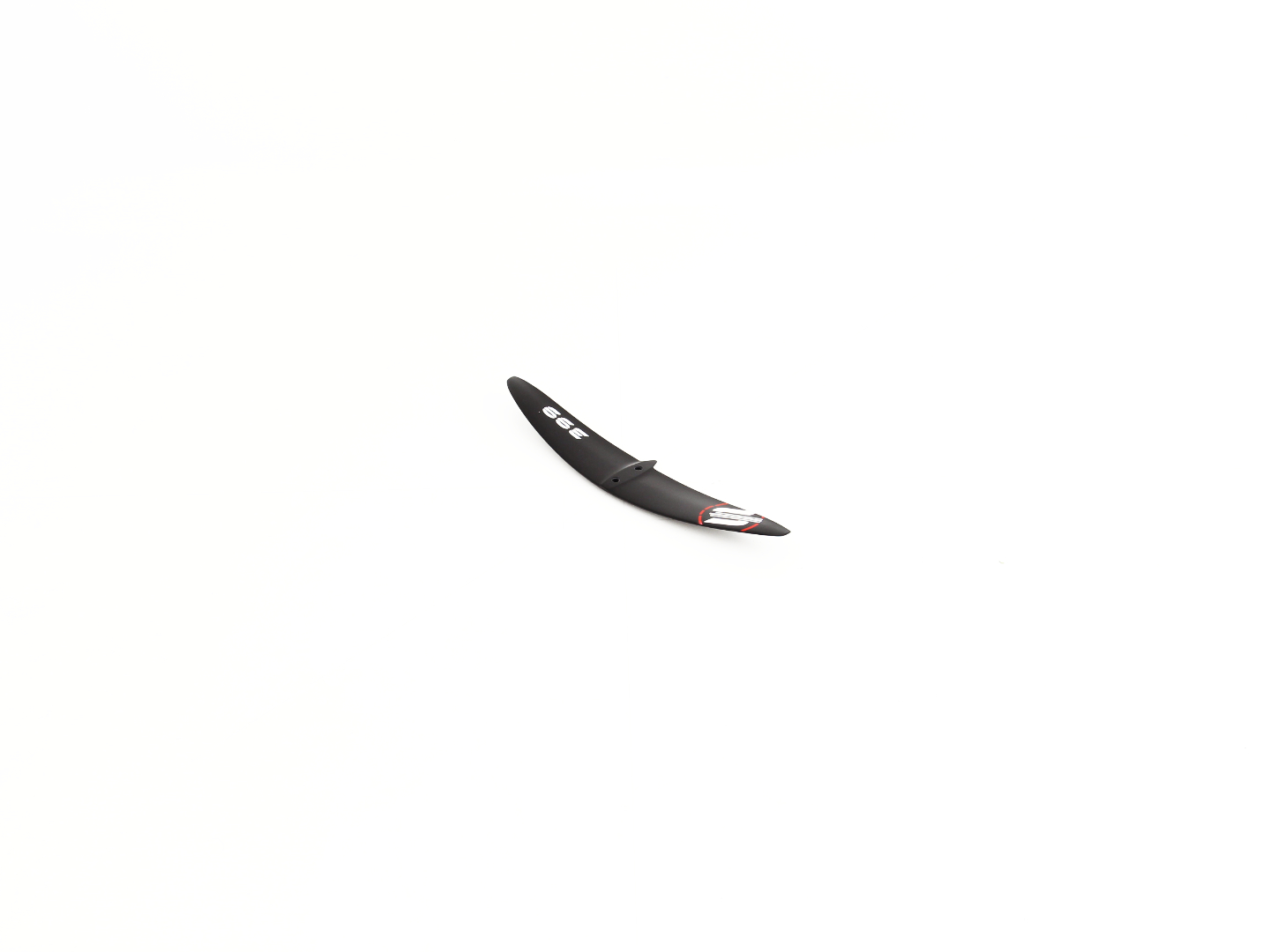

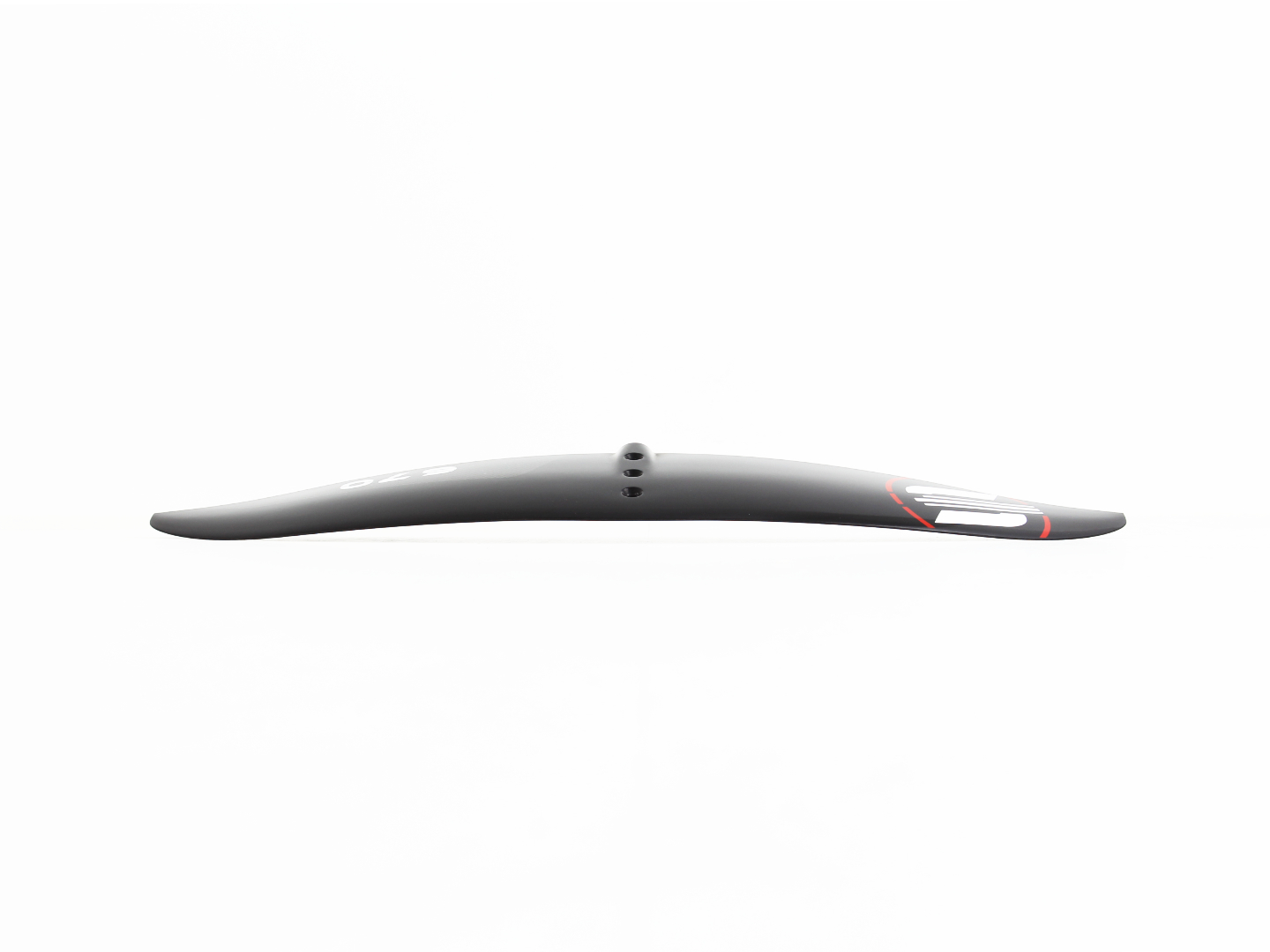

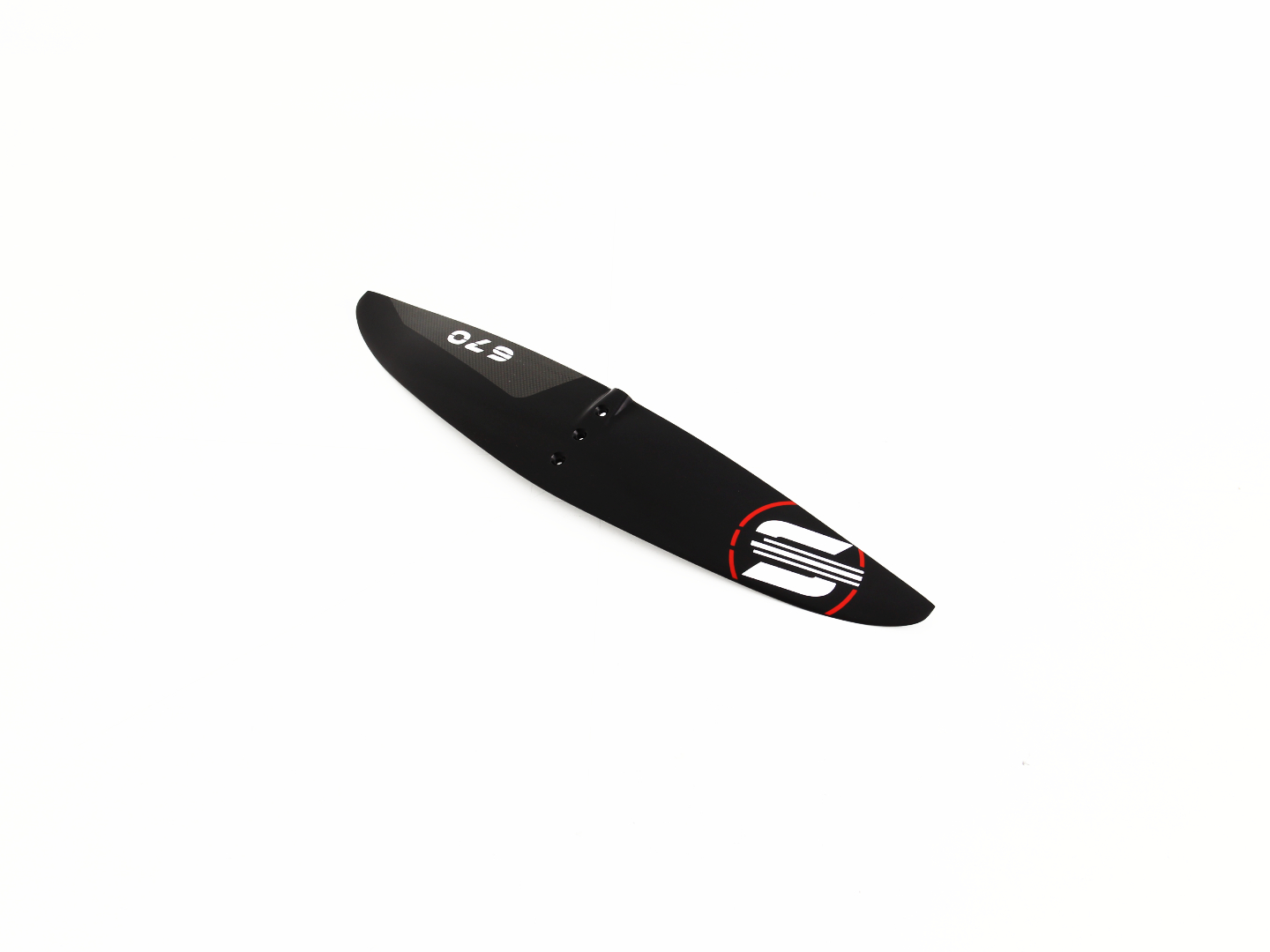

Carbon Front Wing
Recommended for Freeride and Race
IKA registered 2020/2024

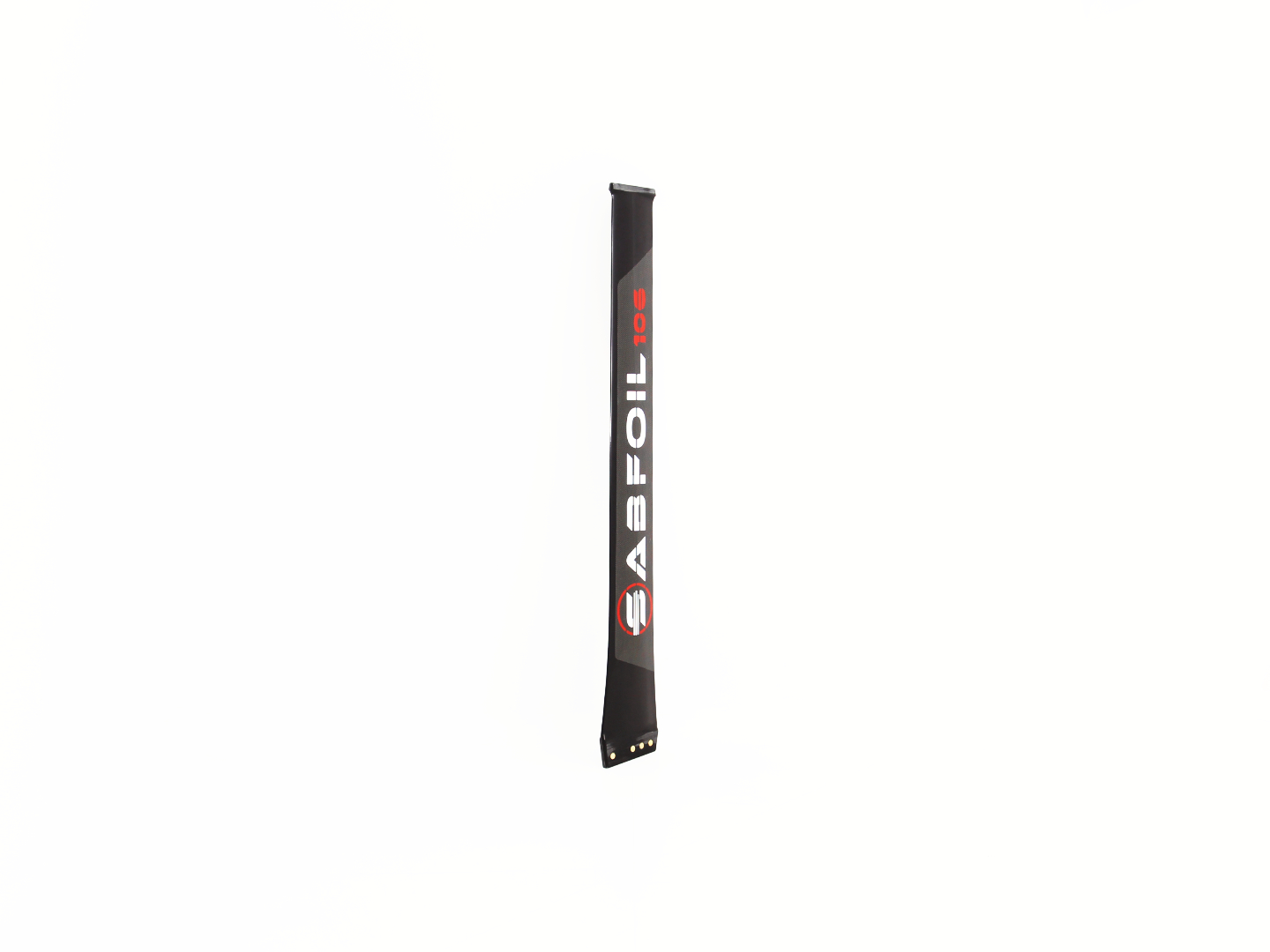

The mast of Sabfoil Racing Division. The M106 is specifically designed and built for racing.
IKA Registered 2020/2024

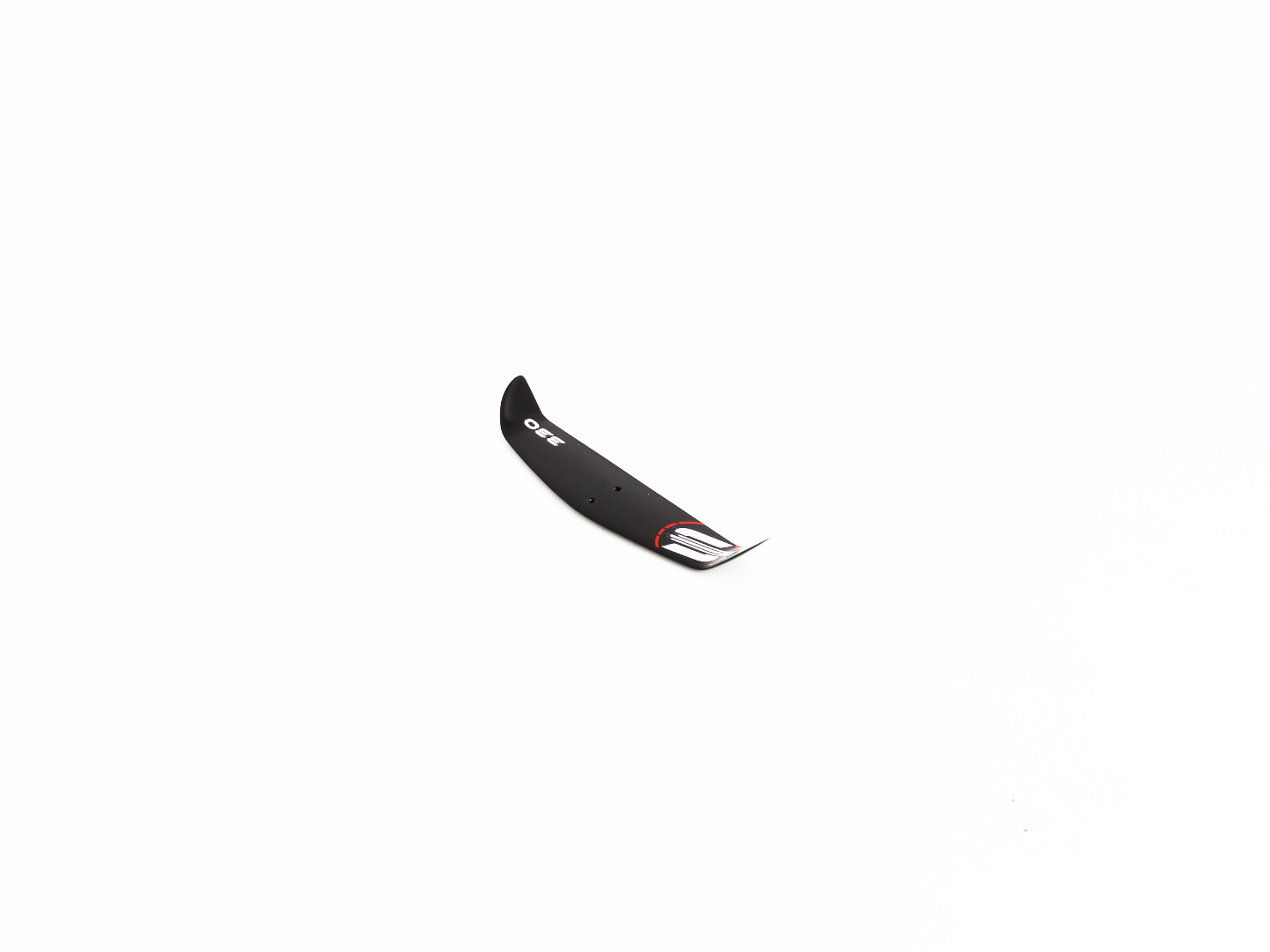

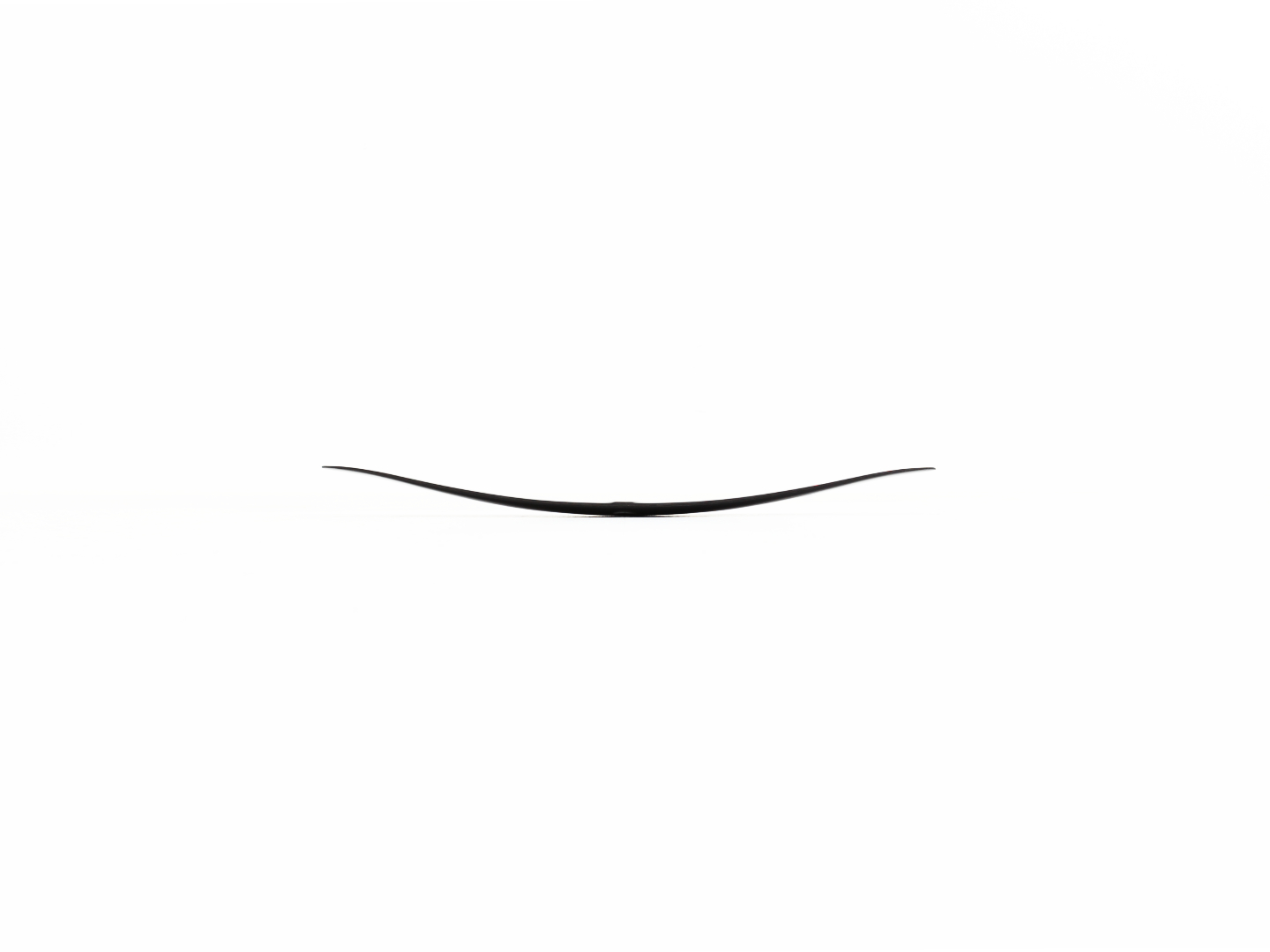

The S330 is an all-around stabilizer, with a good amount of drive and stability that will help you go faster and be confident.
IKA YOUTH FOIL CLASS Registered

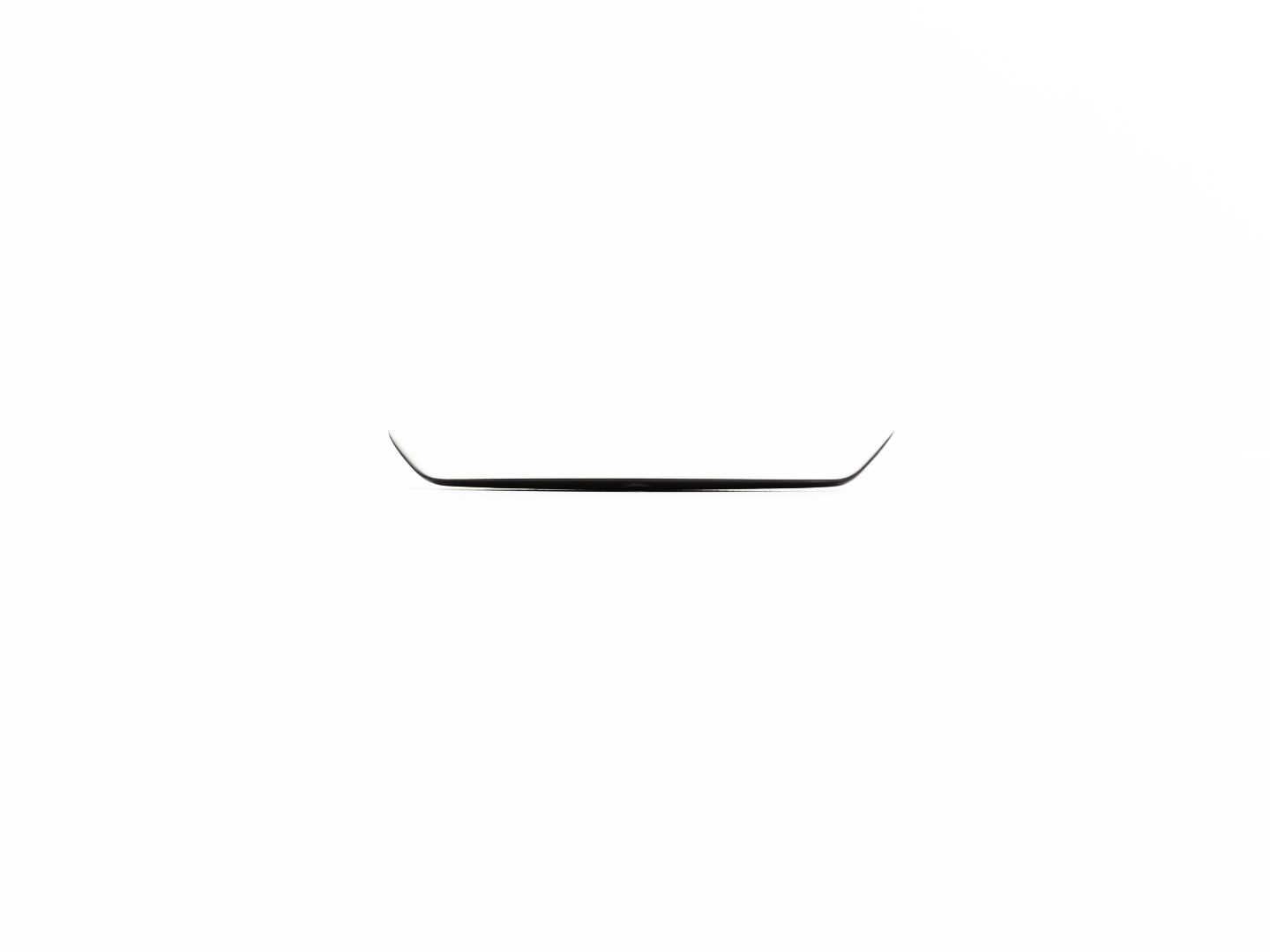

Carbon Stabilizer
