V95800
Kit MW95 - W800 - S370 - FW1010
SKU: V95800
Availability:
Out of stock
Purchase and earn 1950 points
€1,950.00
Discontinued
Kit MW95 - W800 - S370 - FW1010
V95800: the SABFOIL kit specific for slalom!
LIFT
MANEUVERABILITY
TOP SPEED
EASE OF PUMPING
EASE OF USE
Discontinued
Connection System
2021
Disciplines
Wind
Recommended for
Slalom
V95800 is the SABFOIL kit specific for slalom.
The shape and profile of mast MW95 are optimized to offer the best possible performance in terms of speed and maneuverability, while reducing ventilation.
W800 is a slalom wing with the DNA of the racing W670, but with a higher aspect ratio.
The fuselage FW1010 will allow you to manage higher speed and shorter jibe radii!
Always keep the threaded holes of the fuselage clean and lubricate them often using lithium grease (code MHW033) to avoid and prevent oxidation and corrosion due to seawater. Always clean your fuselage with fresh water after use
Related
Total price
Kit MW95 - W800 - S370 - FW1010
€1,950.00
Total
€1,950.00
Discontinued

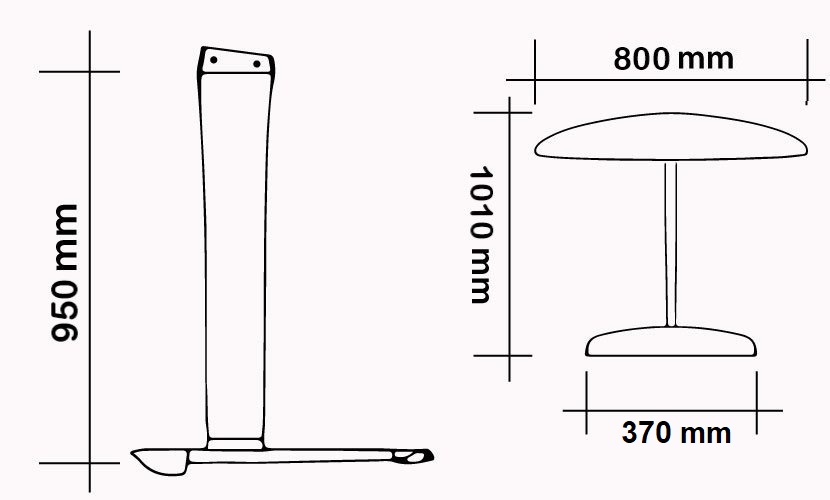

Dimensions & Advanced specs
| Mast Height | 950 mm |
|---|---|
| Front Wing Span | 800 mm |
| Front Wing Root Chord | 129,5 mm |
| Front Wing Aspect Ratio | 7.6 |
| Front Wing Surface | 840 cm2 |
| Stabilizer Span | 370 mm |
| Stabilizer Root Chord | 67,5 mm |
| Stabilizer Aspect Ratio | 7 |
| Stabilizer Surface | 195 cm2 |
| Fuselage Length | 1010 mm |
| Kit Weight | 4520 g [±5%] |
LIFT
MANEUVERABILITY
TOP SPEED
EASE OF PUMPING
EASE OF USE
Content
| MW95 - Mast 95 cm - Tuttle | 1 |
|---|---|
| W800 - Front Wing 800 - 840 cm2 | 1 |
| S370 - Stabilizer 370 - 195 cm2 | 1 |
| FW1010 - Fuselage 1010 - Slalom | 1 |
| MH118 - Hardware Kit W590Y/W695/W740/W800 | 1 |
| MH107 - Hardware Kit S330Y/370/376/399/400 | 1 |
|---|---|
| MH113 - Hardware Kit FS710/FW900/FW1010 | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
| Grease, torx, hex tip | |
| Instructions |
| MW95 - Mast 95 cm - Tuttle | 1 |
|---|---|
| W800 - Front Wing 800 - 840 cm2 | 1 |
| S370 - Stabilizer 370 - 195 cm2 | 1 |
| FW1010 - Fuselage 1010 - Slalom | 1 |
| MH118 - Hardware Kit W590Y/W695/W740/W800 | 1 |
| MH107 - Hardware Kit S330Y/370/376/399/400 | 1 |
| MH113 - Hardware Kit FS710/FW900/FW1010 | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
| Grease, torx, hex tip | |
| Instructions |
