S82945

Kit M82 - W945 - S425 - F700-HS

SKU: S82945
Availability: Low stock
Purchase and earn 1740 points
€1,740.00

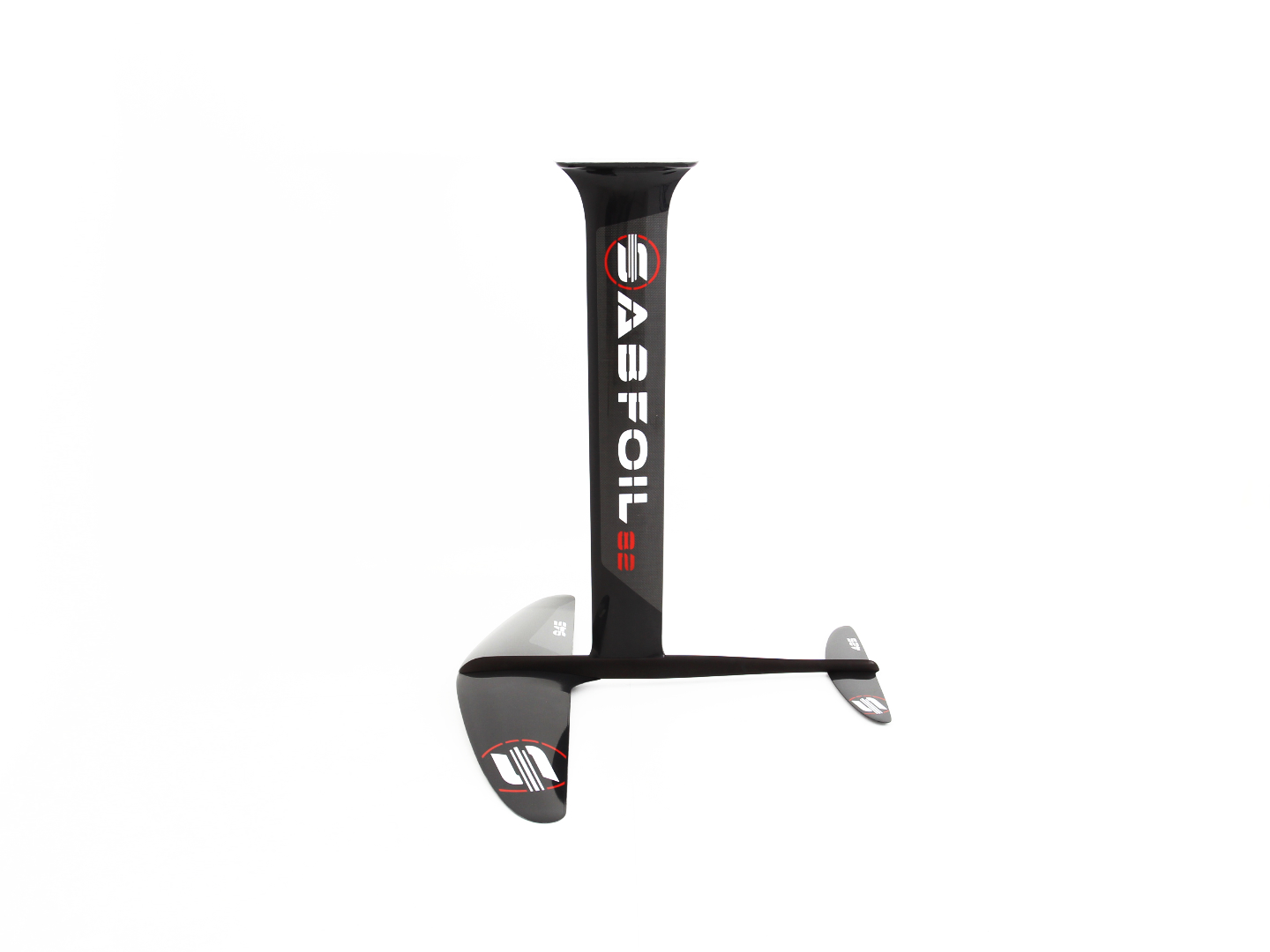

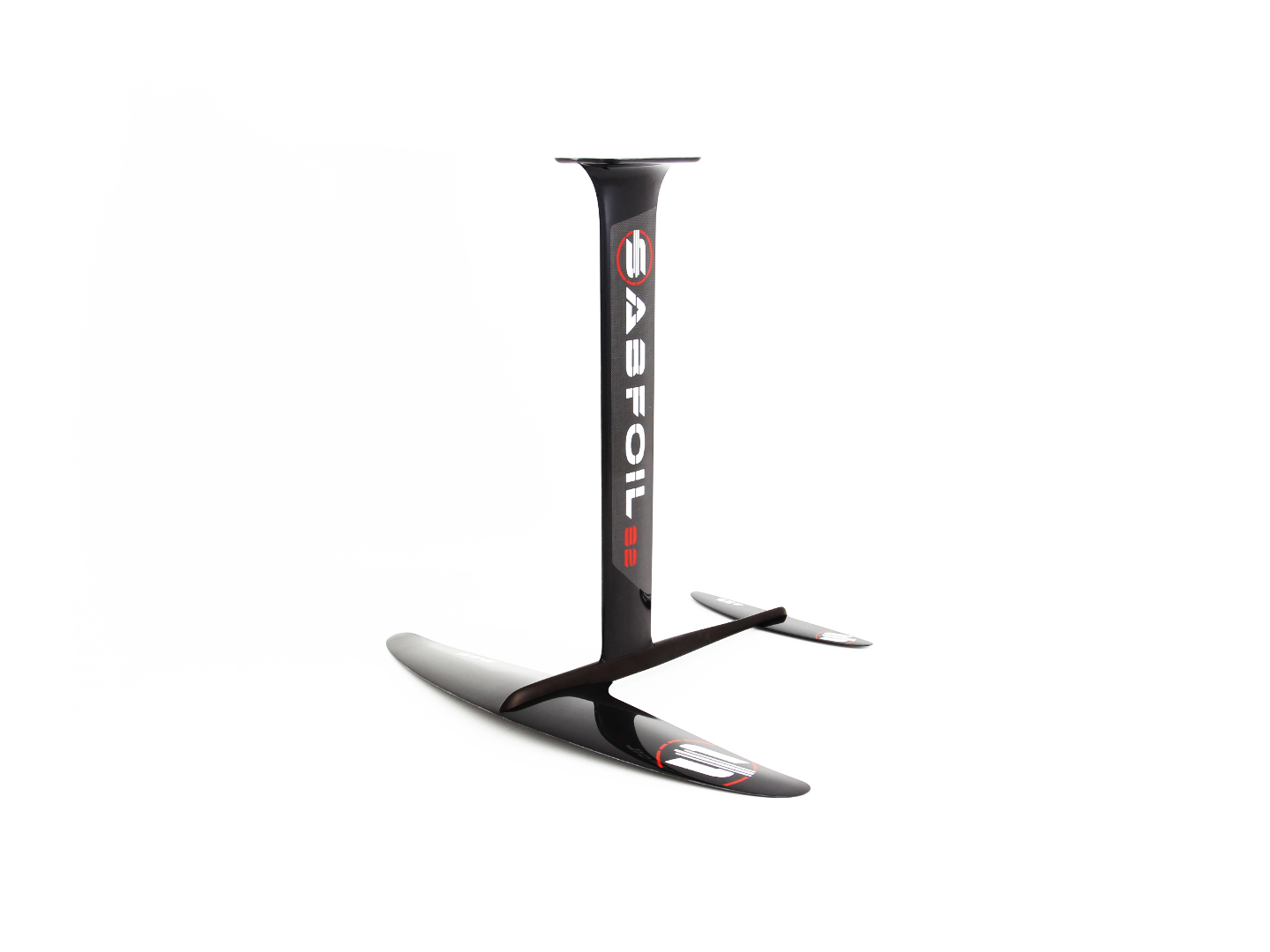

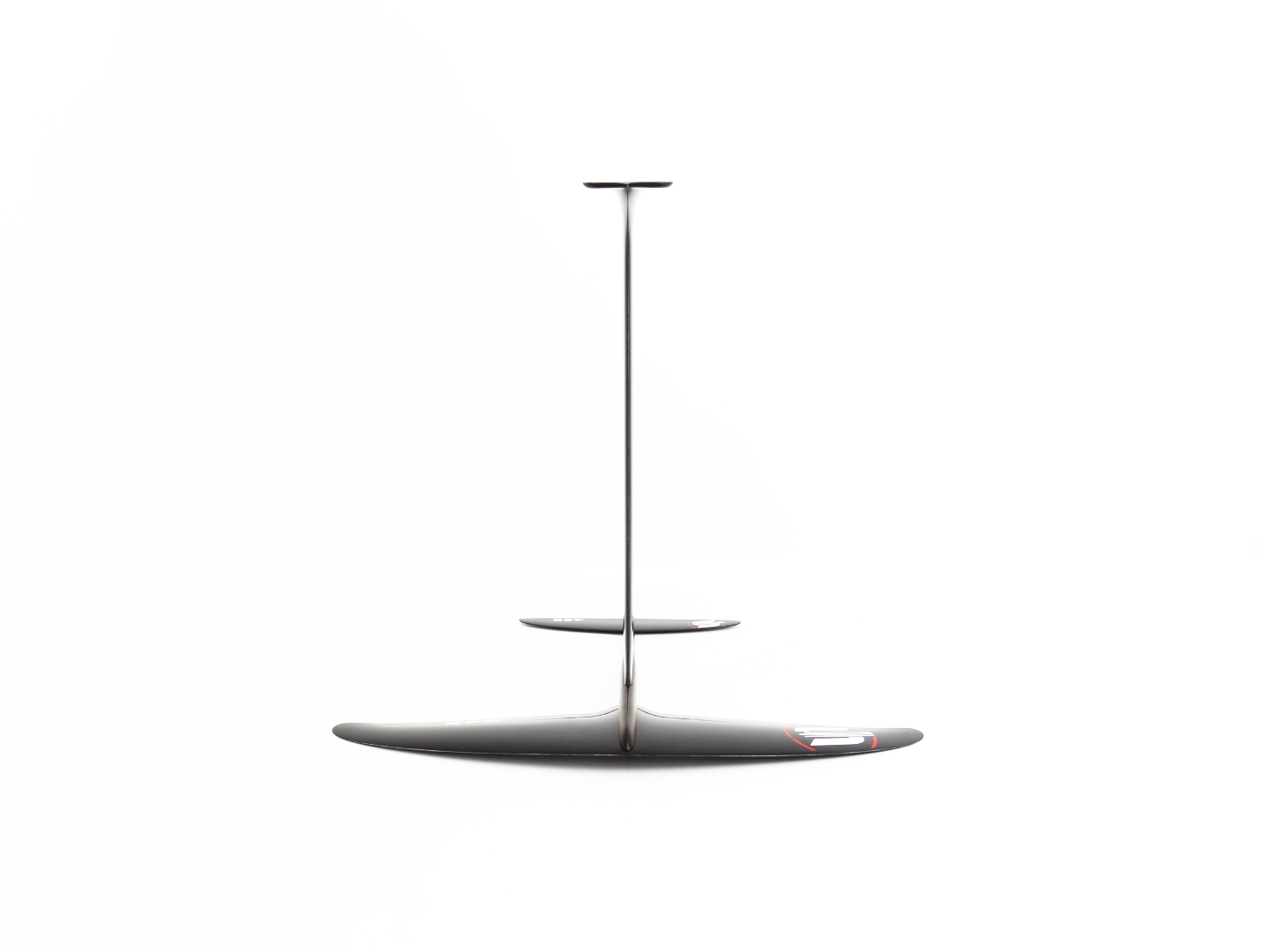

Kit M82 - W945 - S425 - F700-HS

Kit S82945: born for pure surfing!

Kit M82 - W945 - S425 - F700-HS specs
LIFT
MANEUVERABILITY
TOP SPEED
EASE OF PUMPING
EASE OF USE
WING FOIL
SURF FOIL

Kit S82945: born for pure surfing!

The W945, with its 1300 cm2 surface area and longer chord, will guarantee more stability and lift with respect to her sister W940.

The flat design of W945 and S425 is perfect for high maneuverability among waves.

This kit comes with the High Strength fuselage F700-HS.

Always keep the threaded holes of the fuselage clean and lubricate them often using lithium grease (code MHW033) to avoid and prevent oxidation and corrosion due to seawater. Always clean your fuselage with fresh water after use

Related
Hydrofoil Bag MA008 €119.00
Quick Mounting Kit MHW055 Out of stock €59.00
Total price
Kit M82 - W945 - S425 - F700-HS €1,740.00
Total €1,740.00

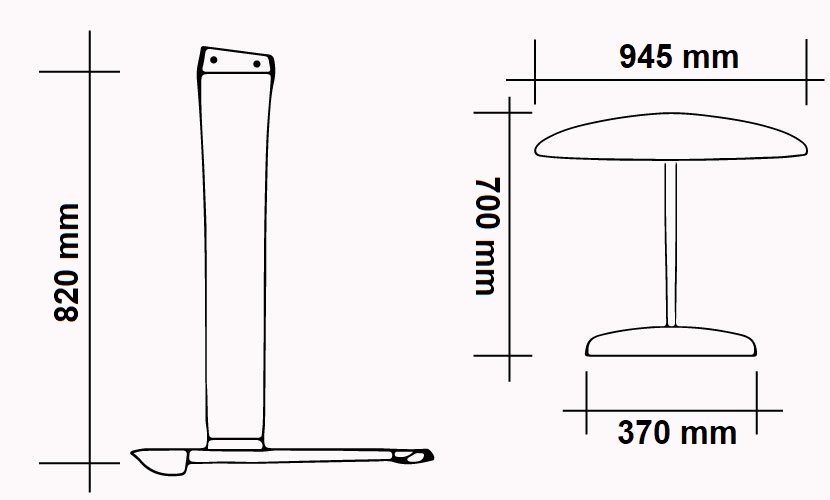

DIMENSIONS & ADVANCED SPECS

S82945-mis
Base Plate Joint 90 x 165 mm
Mast Height 820 mm
Front Wing Span 945 mm
Front Wing Root Chord 185 mm
Front Wing Aspect Ratio 6.9
Front Wing Surface 1300 cm2
Stabilizer Span 425 mm
Stabilizer Root Chord 67,5 mm
Stabilizer Aspect Ratio 6,8
Stabilizer Surface 266 cm2
Fuselage Length 700 mm
Kit Weight 4050 g [±5%]
LIFT
MANEUVERABILITY
TOP SPEED
EASE OF PUMPING
EASE OF USE

content

M82 - Mast 82 cm - Plate 1
W945 - Front Wing 945 - 1300 cm2 1
S425 - Stabilizer 425 - 266 cm2 1
F700-HS - Fuselage 700 - High Strength 1
MH108 - 1x Flat Head Screws Torx M6x20 and 1x M6x16 1
MH111 - 2 x Socket Head Cap Screws M6x30 and Washers 1
MH133 - 3x Flat Head Screws Hex M8x30 1
Torx, Hex tip, Grease
Instructions
