C93999K - M93K - W999 - S430 - F703K - CP02K
Hydrofoil Set C93999K- Full Carbon Plate | KMS
Recommended for Freestyle and Freeride
This kit, developed in collaboration with pro-rider Balz Muller and enhanced with a full-carbon plate, is ideal for Wing-Foil, in particular for Freestyle and Freeride in low winds.
Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can change your setup at any time, without any problems.

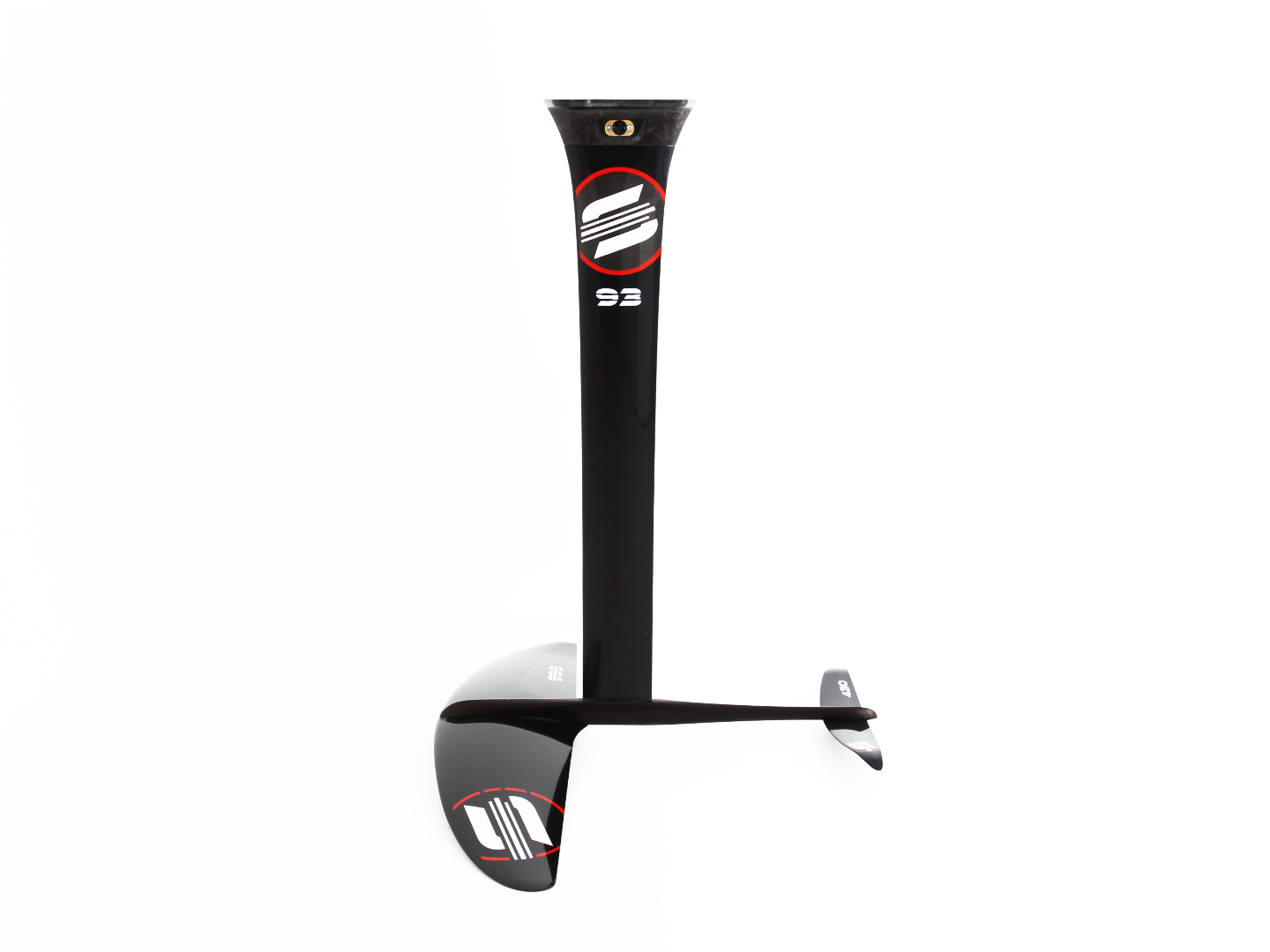

The kit C93999K consists of:
Mast: M93K - 930 mm
Front Wing: W999 - 1747 cm2
Stabilizer: S430 - 240 cm2
Fuselage: F703K - 703mm
Mast Plate: CP02K
It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.
|Mast - Height||930 mm|
|Front Wing - Span||999 mm|
|Front Wing - Surface||1747 cm2|
|Front Wing - Root Chord||225 mm|
|Front Wing - Aspect Ratio||5.7|
|Stabilizer - Span||430 mm|
|Stabilizer - Surface||240 cm2|
|Stabilizer - Root Chord||68 mm|
|Stabilizer - Aspect Ratio||7.7|
|Fuselage - Length||703 mm|
|Board Connection Type||Carbon Plate|
