C831350K - M83K - W1350 - S370 - F703K - CP02K

SKU: C831350K
Availability: Low stock
Purchase and earn 2150 points
€2,150.00

WING FOIL
PUMP FOIL
M83K - W1350 - S370 - F703K - CP02K

Hydrofoil Set C831350K- Full Carbon Plate | KMS

Recommended for Pumping and Freeride


M83K - W1350 - S370 - F703K - CP02K specs
LIFT
MANEUVERABILITY
TOP SPEED
EASE OF PUMPING
EASE OF USE

Disciplines Pumping - Wing
Recommended for Freeride - Pumping
Connection System Kraken Modular System

The kit C831350K with a full-carbon plate, is ideal for Pumping and Wing-Foil.

The very wide W1350 front-wing, designed with a glider in mind, guarantees excellent ease of pumping and gliding, and the stabilizer S370 offers maximum control.

Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can change your setup at any time, without any problems.

The kit C831350K consists of:

  • Mast: M83K - 830 mm

  • Front Wing: W1350 - 1880 cm2

  • Stabilizer: S370 - 195 cm2

  • Fuselage: F703K - 703mm

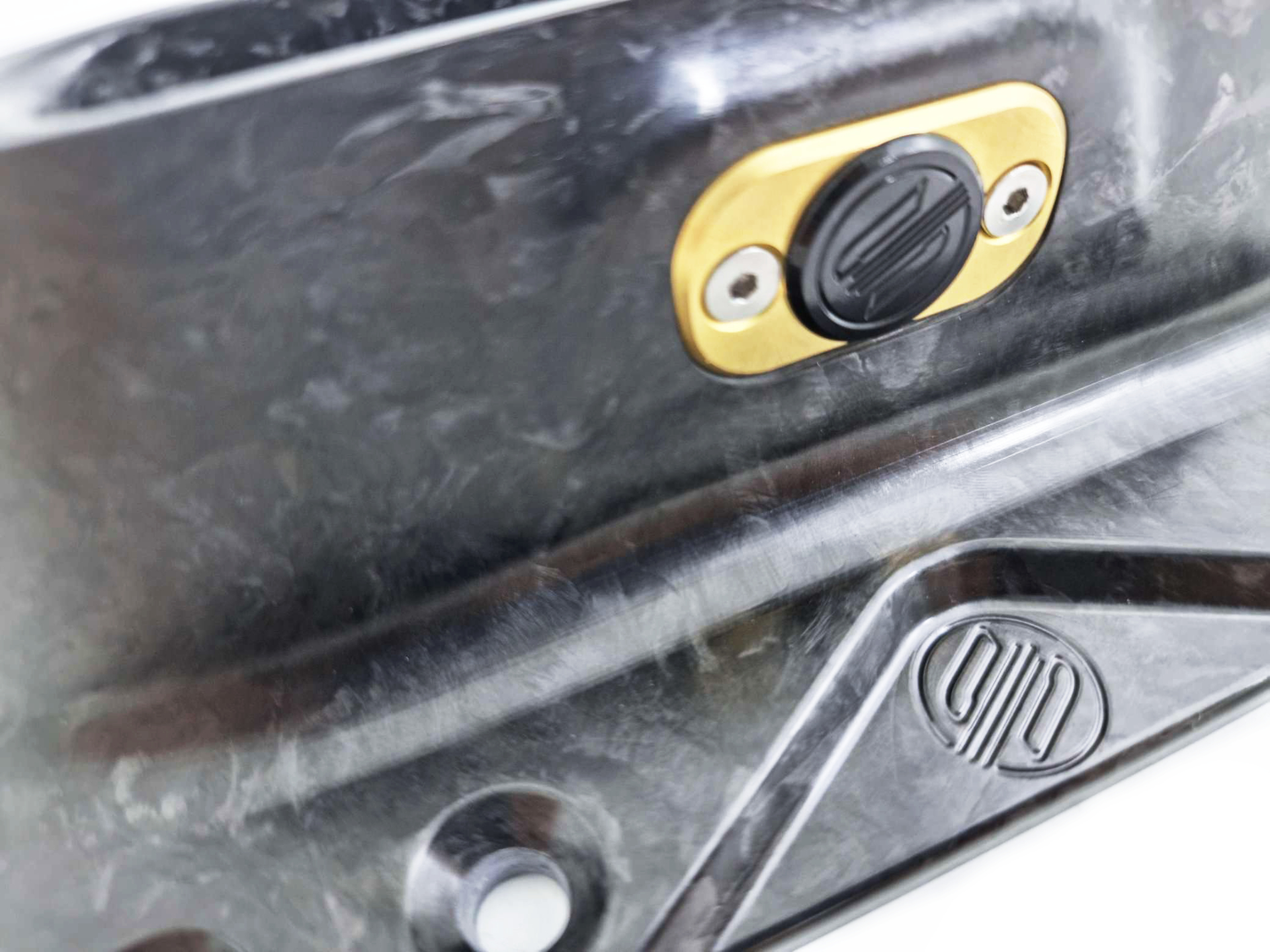

  • Mast Plate: CP02K

It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.

Click here for more information about Kraken Modular System



Dimensions & Advanced specs
Mast - Height 830 mm
Front Wing - Span 1350 mm
Front Wing - Surface 1880 cm2
Front Wing - Root Chord 170 mm
Front Wing - Aspect Ratio 9.35
Stabilizer - Span 370 mm
Stabilizer - Surface 195 cm2
Stabilizer - Root Chord 68 mm
Stabilizer - Aspect Ratio 7.7
Fuselage - Length 730 mm
Foil Set - Weight [±5%]
Board Connection Type Carbon Plate
