93999K - M93K - W999 - S425 - F703K
Hydrofoil Set - Kraken Modular System
Recommended for Freestyle and Freeride
This kit, developed in collaboration with pro-rider Balz Muller, is ideal for Wing-Foil, in particular for Freestyle and Freeride in light winds.
Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can upgrade your setup at any time, without any problems.

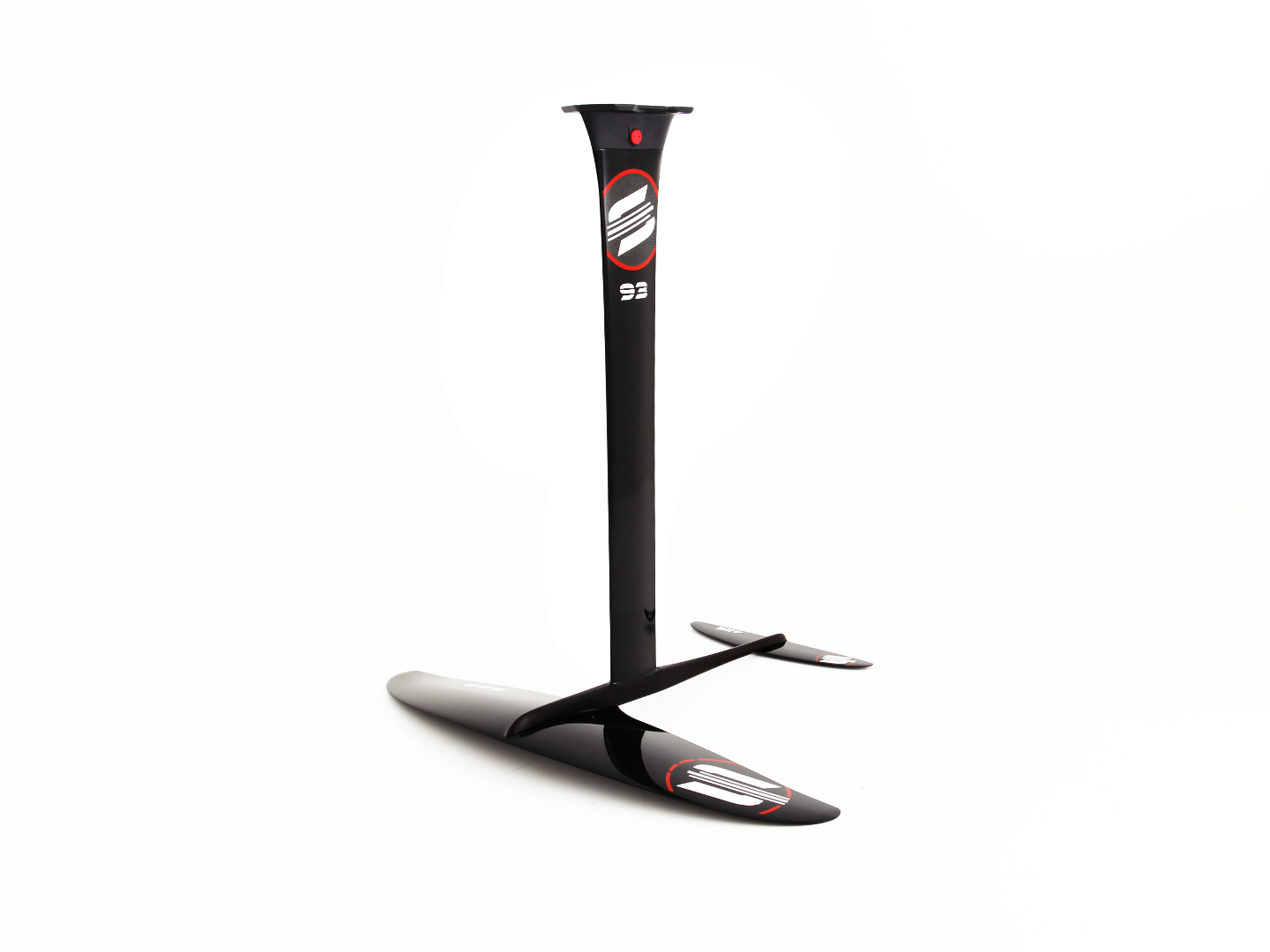

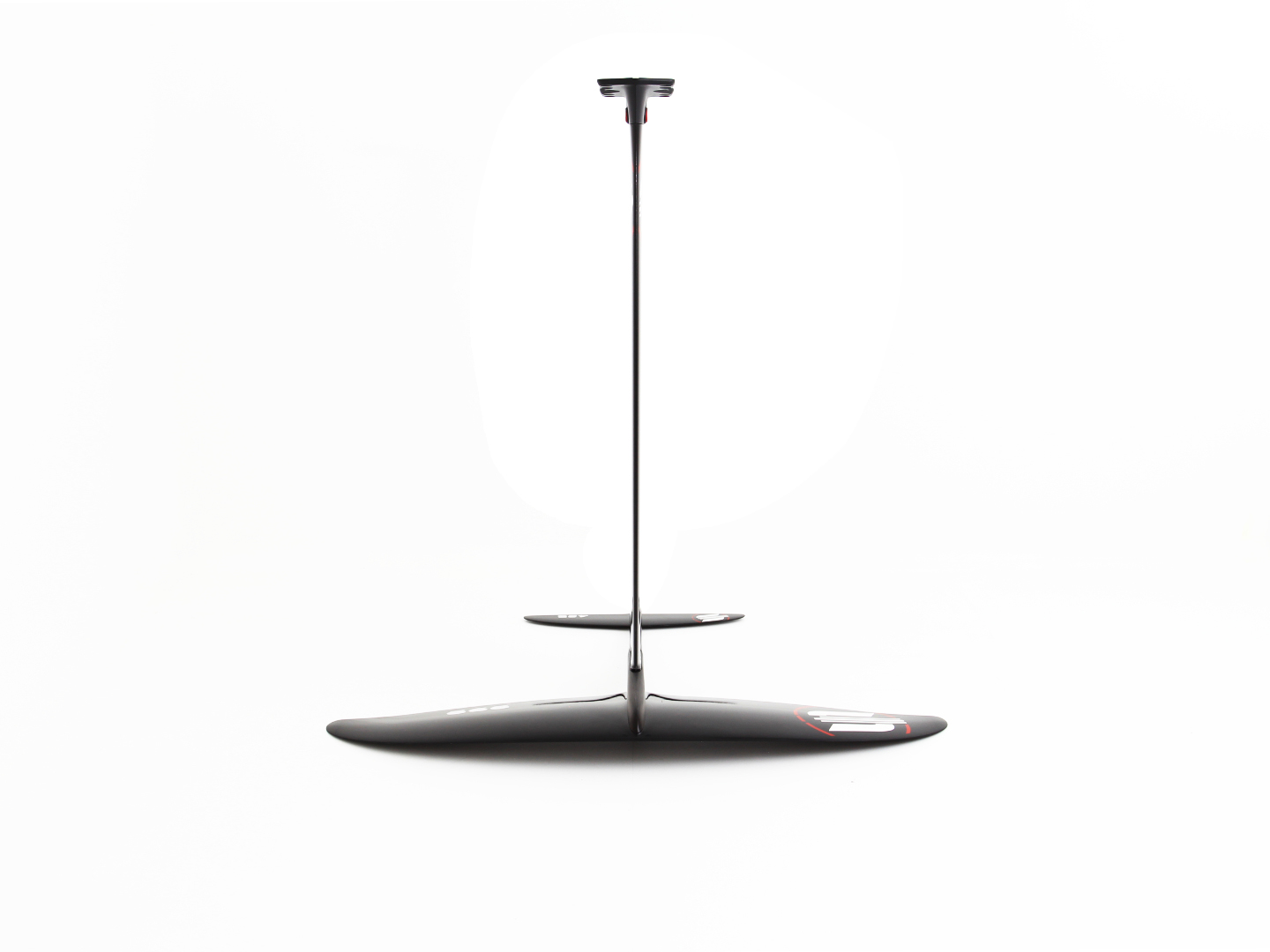

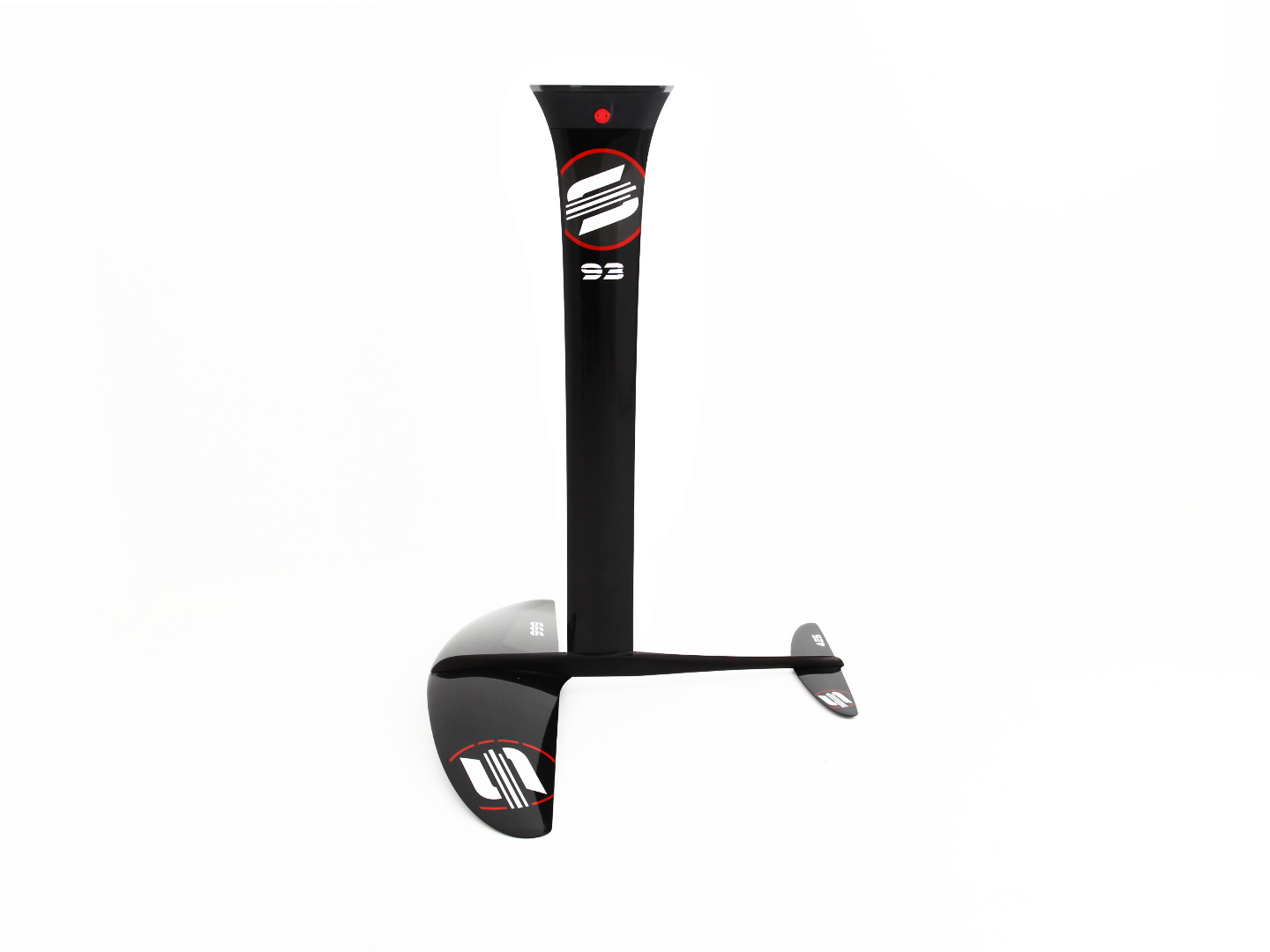

The kit consists of:
Mast: M93K - 930 mm
Front Wing: W999 - 1747cm2
Stabilizer: S425 - 266 cm2
Fuselage: F703K - 703 mm
Mast Plate: P02K
It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.
|Mast - Height||930 mm|
|Front Wing - Span||999 mm|
|Front Wing - Surface||1747 cm2|
|Front Wing - Root Chord||225 mm|
|Front Wing - Aspect Ratio||5,7|
|Stabilizer - Span||425 mm|
|Stabilizer - Surface||266 cm2|
|Stabilizer - Root Chord||78 mm|
|Stabilizer - Aspect Ratio||6,8|
|Fuselage - Length||703 mm|
|Board Connection Type||Plate|
