93899K

M93K - W899 - S425 - F703K

SKU: 93899K
Availability: Low stock
Purchase and earn 1880 points
€1,880.00
M93K - W899 - S425 - F703K

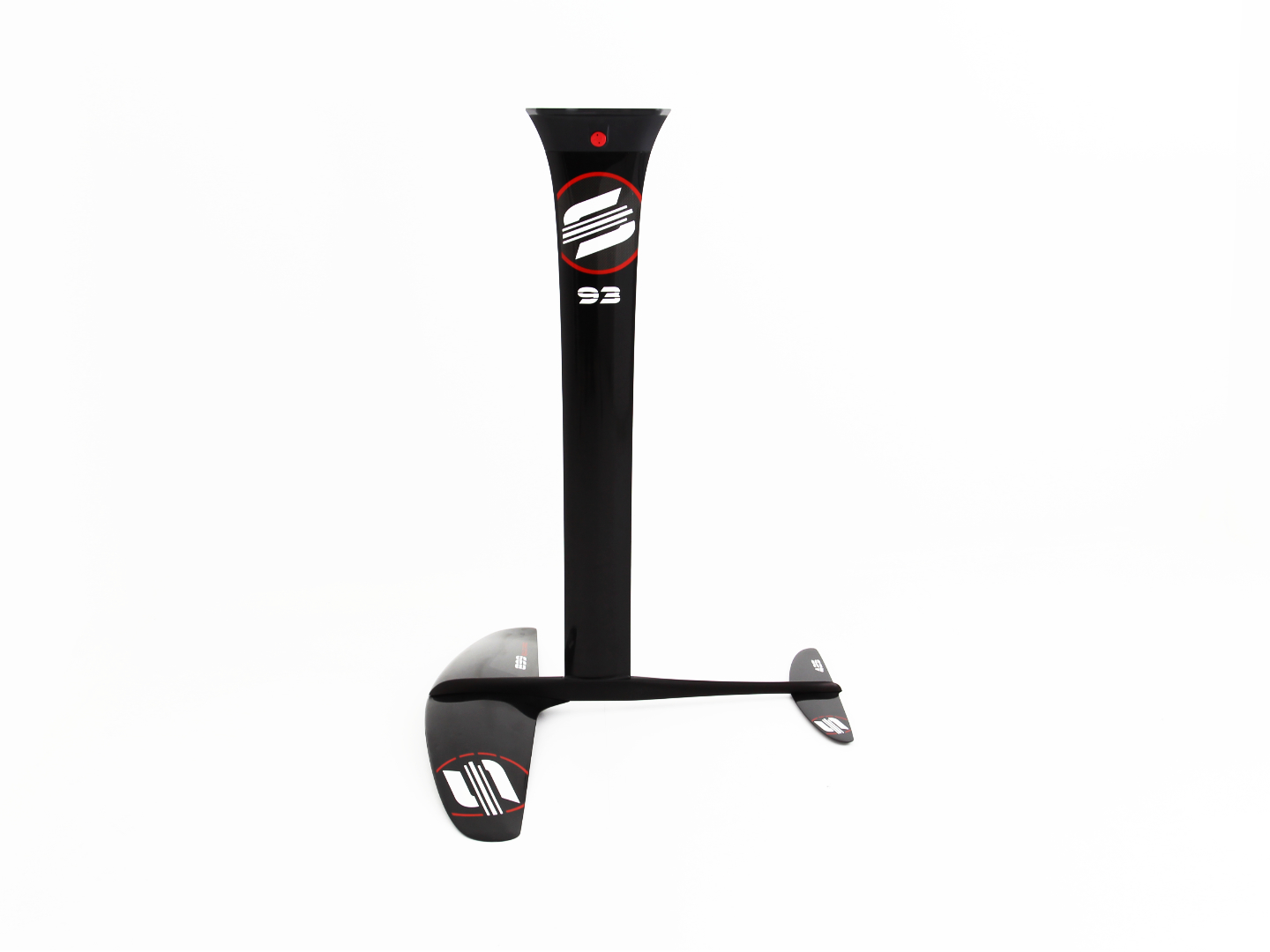

Hydrofoil Set - Kraken Modular System
Recommended for Freestyle and Freeride

M93K - W899 - S425 - F703K specs
LIFT
MANEUVERABILITY
TOP SPEED
EASE OF PUMPING
EASE OF USE
WING FOIL
Connection System Kraken Modular System
Disciplines Wind
Recommended for Freeride - Freestyle

This kit, developed in collaboration with pro-rider Balz Muller, is ideal for Wing-Foil, and in particular for Freestyle and Freeride in moderate winds.

Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can upgrade your setup at any time, without any problems.

The kit consists of:

  • Mast: M93K - 930 mm

  • Front Wing: W899 - 1383 cm2

  • Stabilizer: S425 - 266 cm2

  • Fuselage: F703K - 703mm

  • Mast Plate: P02K

It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.

Click here for more information about Kraken Modular System

Related
Hydrofoil Bag MA008 Out of stock
€120.00
Kraken Quick Release System Q01K Out of stock
€80.00
Total price
M93K - W899 - S425 - F703K €1,880.00
Total €1,880.00

Dimensions & Advanced specs

Disegno misure KIT 93899K
Mast - Height 930 mm
Front Wing - Span 899 mm
Front Wing - Surface 1383 cm2
Front Wing - Root Chord 187 mm
Front Wing - Aspect Ratio 5,8
Stabilizer - Span 425 mm
Stabilizer - Surface 266 cm2
Stabilizer - Root Chord 78 mm
Stabilizer - Aspect Ratio 6,8
Fuselage - Length 703 mm
Foil Set - Weight [±5%] 4,56 kg
Board Connection Type Plate
LIFT
MANEUVERABILITY
TOP SPEED
EASE OF PUMPING
EASE OF USE

Content

M93K - Carbon Mast 93 cm 1
W899 - Front Wing 899 Balz Muller LTD - 1383 cm2 1
S425 - Stabilizer 425 - 266 cm2 1
F703K - Fuselage 703 - Kraken Modular System 1
P02K - Mast Plate - Kraken Modular System 1
MH135 - Hardware Kit W899/W999 1
MH108 - Hardware Kit S425/S450/S483 1
MH138 - Hardware Kit F703K/753K/903K/1003K 1
MH144 - Foam Pads for Plate - Kraken Modular System 1
Flat Head Screws Hex M8x30 4
Conical Washers 4
MH137 - Allen Keys, Torx Key and Grease 1
MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° 1
