93699K
M93K - W699 - S399 - F703K

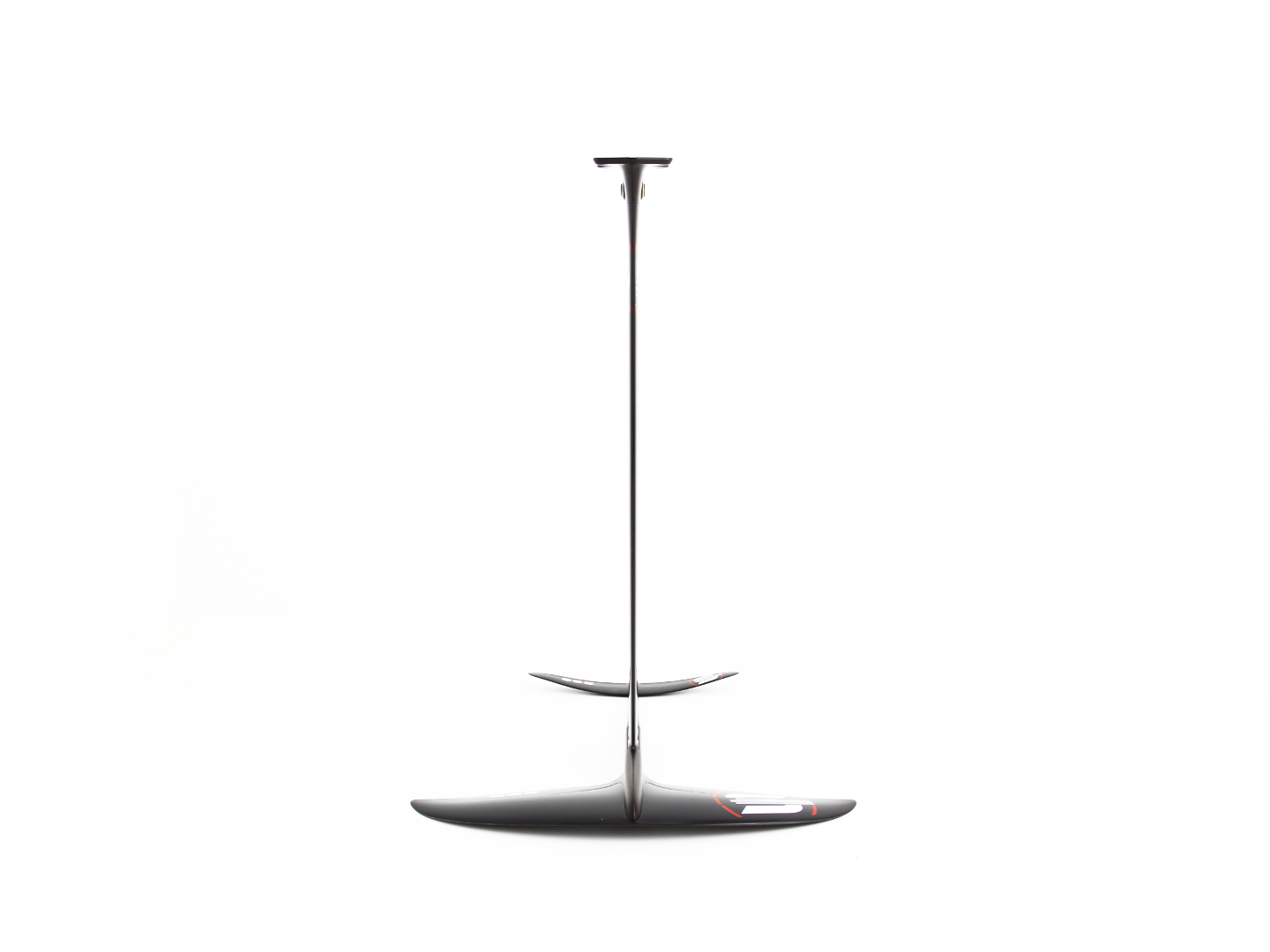

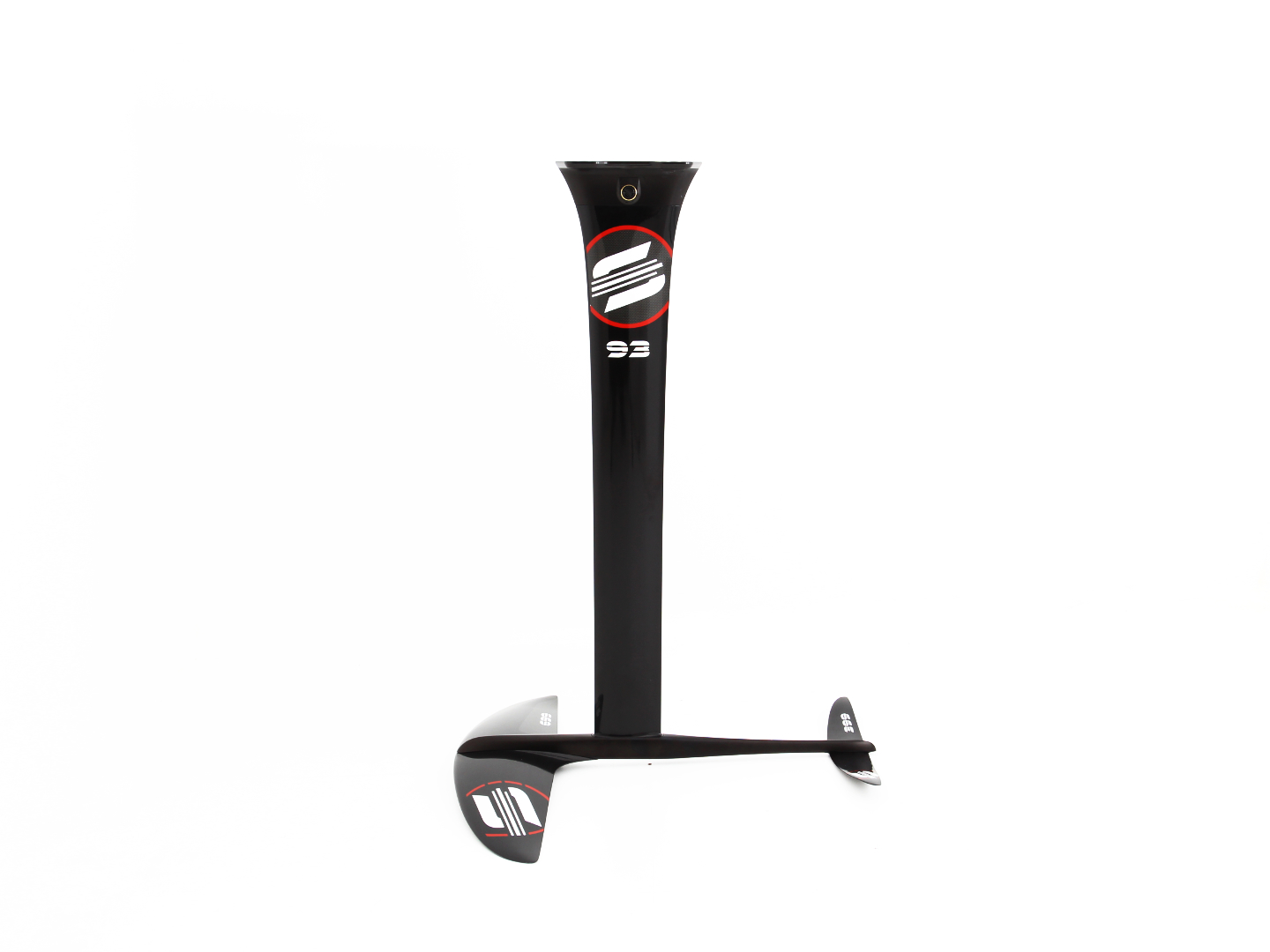

Hydrofoil Set - Kraken Modular System
Recommended for Freeride and Freestyle. A good choice also for Beginners.
This kit is ideal for Kite-Foil, in particular for Freeride and Freestyle. The high lift make it a good choice also for beginners who wants to try Kite-Foil in low-moderate winds.
Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can upgrade your setup at any time, without any problems.
The kit consists of:
Mast: M93K - 930 mm
Front Wing: W699
Stabilizer: S399 - 207 cm2
Fuselage: F703K - 703 mm
Mast Plate: P02K
It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.
Dimensions & Advanced specs
| Mast - Height | 930 mm |
|---|---|
| Front Wing - Span | 699 mm |
| Front Wing - Surface | 850 cm2 |
| Front Wing - Root Chord | 170 mm |
| Front Wing - Aspect Ratio | 5,75 |
| Stabilizer - Span | 399 mm |
| Stabilizer - Surface | 207 cm2 |
| Stabilizer - Root Chord | 64 mm |
| Stabilizer - Aspect Ratio | 7,7 |
| Fuselage - Length | 703 mm |
| Foil Set - Weight [±5%] | 4,33 kg |
| Board Connection Type | Plate |
Content
| MH122 - Adaptor for Small Chord Stabilizers - 0° | 1 |
|---|---|
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
| M93K - Carbon Mast 93 cm | 1 |
|---|---|
| W699 - Front Wing 699 - 880 cm2 | 1 |
| S399 - Stabilizer 399 - 207 cm2 | 1 |
| F703K - Fuselage 703 - Kraken Modular System | 1 |
| P02K - Mast Plate - Kraken Modular System | 1 |
| MH134 - Hardware Kit W790/799/1100/1250 | 1 |
| MH107 - Hardware Kit S330Y/370/376/399/400 | 1 |
| MH122 - Adaptor for Small Chord Stabilizers - 0° | 1 |
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
