83940K
M83K - W940 - S370 - F703K

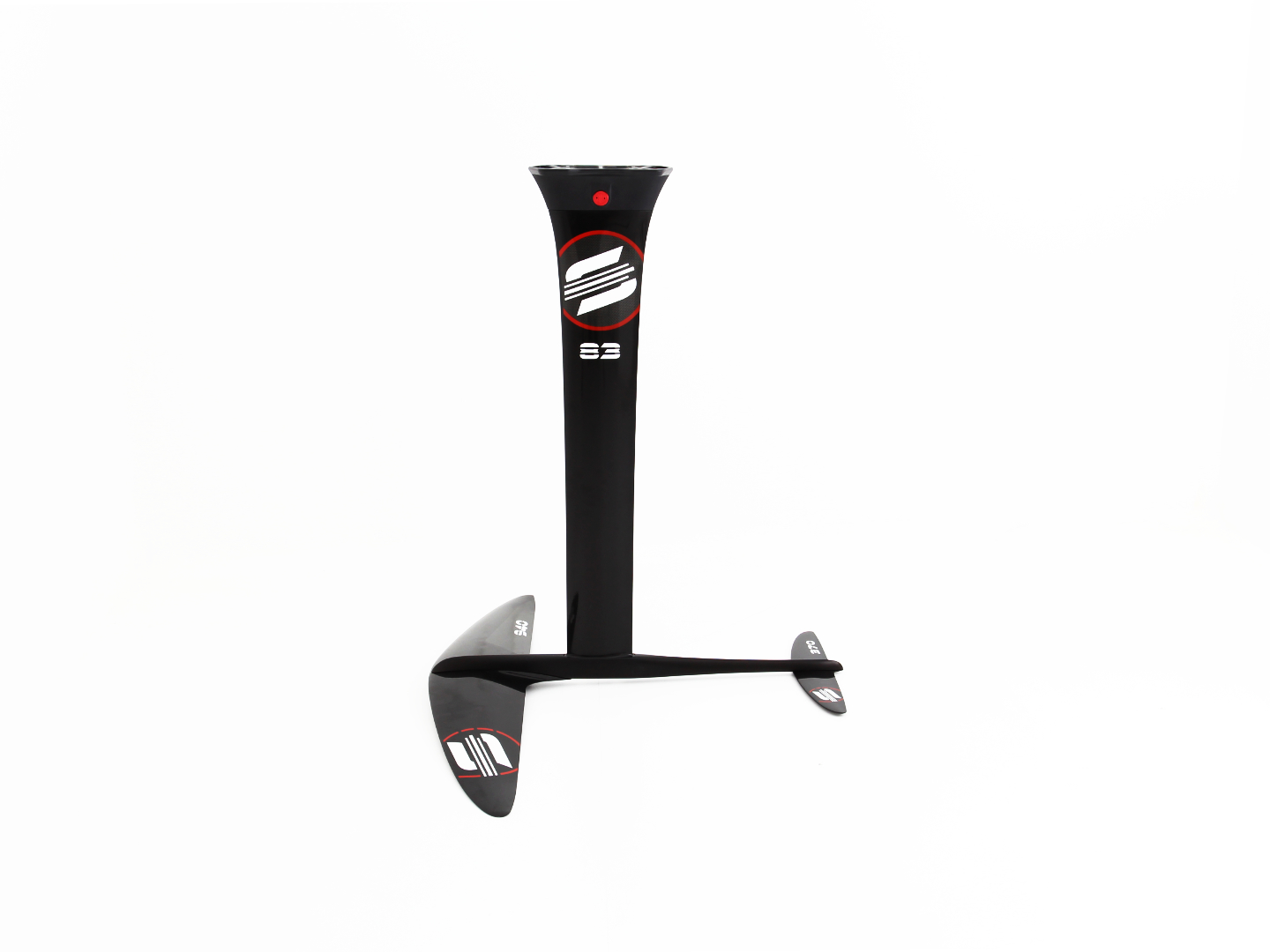

Hydrofoil Set - Kraken Modular System
Recommended for Surf, Wave and Freeride
This kit is ideal for Surf-Foil and Wing-Foil, in particular for Surf, Wave e Freeride in moderate-strong winds.
Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can upgrade your setup at any time, without any problems.
The kit consists of:
Mast: M83K - 830 mm
Front Wing: W940 - 1100 cm2
Stabilizer: S370 - 195 cm2
Fuselage: F703K - 703 mm
Mast Plate: P02K
It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.
Dimensions & Advanced specs
| Mast - Height | 830 mm |
|---|---|
| Front Wing - Span | 940 mm |
| Front Wing - Surface | 1100 cm2 |
| Front Wing - Root Chord | 165 mm |
| Front Wing - Aspect Ratio | 8 |
| Stabilizer - Span | 370 mm |
| Stabilizer - Surface | 195 cm2 |
| Stabilizer - Root Chord | 67,5 mm |
| Stabilizer - Aspect Ratio | 7 |
| Fuselage - Length | 703 mm |
| Foil Set - Weight [±5%] | 4,3 kg |
| Board Connection Type | Plate |
Content
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
|---|---|
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
| M83K - Carbon Mast 83 cm | 1 |
|---|---|
| W940 - Front Wing 940 - 1100 cm2 | 1 |
| S370 - Stabilizer 370 - 195 cm2 | 1 |
| F703K - Fuselage 703 - Kraken Modular System | 1 |
| P02K - Mast Plate - Kraken Modular System | 1 |
| MH133 - Hardware Kit W940/W945/W950 | 1 |
| MH107 - Hardware Kit S330Y/370/376/399/400 | 1 |
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
