83799K
M83K - W799 - S399 - F703K

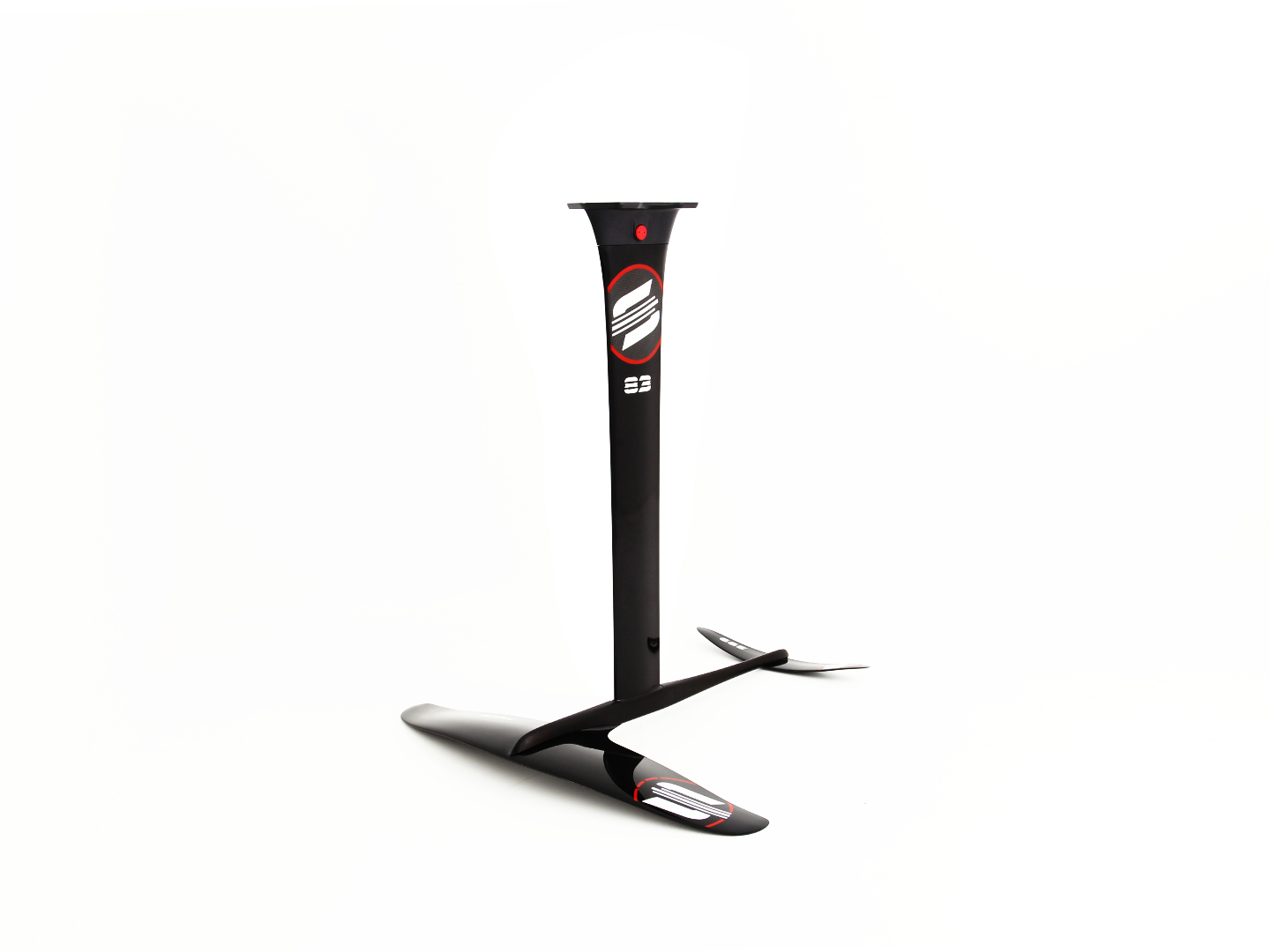

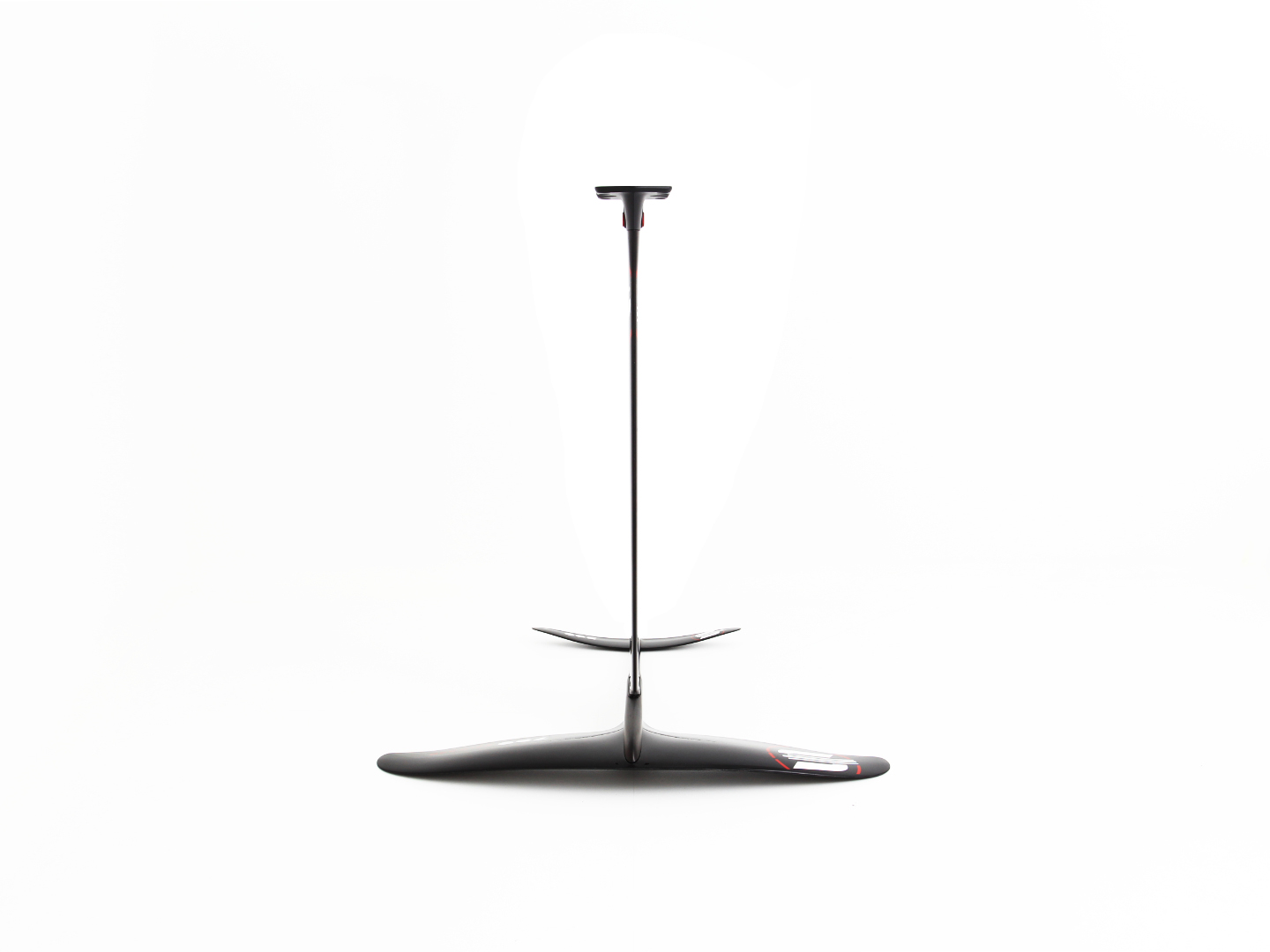

Hydrofoil Set - Kraken Modular System
Recommended for Freestyle and Freeride
This kit, developed in collaboration with pro-rider Balz Muller, is ideal for Wing-Foil, in particular for Freestyle and Freeride in moderate-strong winds.
Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can change your setup at any time, without any problems.
The kit consists of:
Mast: M83K - 830 mm
Front Wing: W799 - 1100 cm2
Stabilizer: S399 - 207 cm2
Fuselage: F703K - 703mm
Mast Plate: P02K
It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.
Dimensions & Advanced specs
| Mast - Height | 830 mm |
|---|---|
| Front Wing - Span | 800 mm |
| Front Wing - Surface | 1100 cm2 |
| Front Wing - Root Chord | 170 mm |
| Front Wing - Aspect Ratio | 5,8 |
| Stabilizer - Span | 400 mm |
| Stabilizer - Surface | 207 cm2 |
| Stabilizer - Root Chord | 64 mm |
| Stabilizer - Aspect Ratio | 7,7 |
| Fuselage - Length | 703 mm |
| Foil Set - Weight [±5%] | 4,22 kg |
| Board Connection Type | Plate |
Content
| MH122 - Adaptor for Small Chord Stabilizers - 0° | 1 |
|---|---|
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
| M83K - Carbon Mast 83 cm | 1 |
|---|---|
| W799 - Front Wing 799 Balz Muller LTD - 1100 cm2 | 1 |
| S399 - Stabilizer 399 - 207 cm2 | 1 |
| F703K - Fuselage 703 - Kraken Modular System | 1 |
| P02K - Mast Plate - Kraken Modular System | 1 |
| MH134 - Hardware Kit W790/799/1100/1250 | 1 |
| MH107 - Hardware Kit S330Y/370/376/399/400 | 1 |
| MH122 - Adaptor for Small Chord Stabilizers - 0° | 1 |
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
