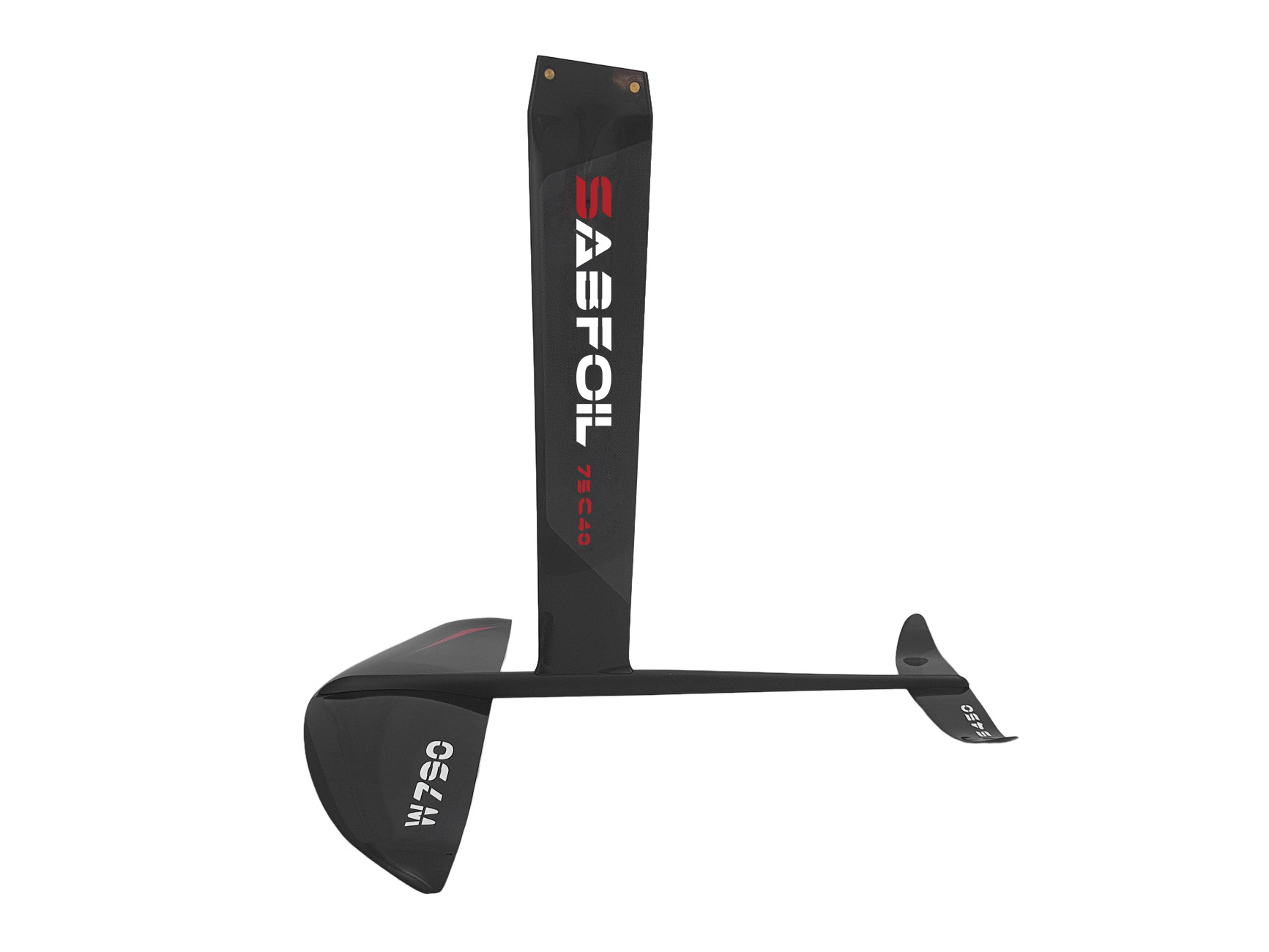

V75C790
Kit MW75C40 - W790 - S450 - FW900 CARBON VENTO - KITE



The easiest carbon wind foil in the market at a very affordable price

Cruising, carving, wave riding in small waves, the V75C790 does everything with amazing ease of use. Jibing has never been so easy!
Everyone who tried the new Vento 75C790 was impressed how easily the foil flies!
Designed to plane early with no effort, an ultra stable foil that performs incredibly well in light to medium wind. For beginners to intermediate wind foilers.






DIMENSIONS & ADVANCED SPECS

Mast Height | 750 mm |
---|---|
Front Wing Span | 790 mm |
Front Wing Root Chord | 246 mm |
Front Wing Aspect Ratio | 4.3 |
Front Wing Surface | 1150 cm2 |
Stabilizer Span | 450 mm |
Stabilizer Root Chord | 85 mm |
Stabilizer Aspect Ratio | 6.22 |
Stabilizer Surface | 326 cm2 |
Mast Weight | 1,8027 kg |
Board Connection | Deep Tuttle |
Fuselage Length | 900 mm |
Fuselage Weight | 1,106 kg |
Kit Weight | 4111 gr +/- 5% |
content
MW75C - Carbon Mast 75 | 1 |
---|---|
W790 - Carbon Front Wing 790 | 1 |
S450 - Carbon Stabilizer 450 | 1 |
FW900 - Fuselage 900 | 1 |
Socket Head Screws M6x20 and washers | 2 |
Flat Head Screw torx M6x35 | 1 |
Flat Head Screw torx M6x30 | 2 |
---|---|
Flat Head Screw torx M6x20 | 1 |
Flat Head Screw torx M6x16 | 1 |
Grease, torx and hex tip | |
Instructions |
MW75C - Carbon Mast 75 | 1 |
---|---|
W790 - Carbon Front Wing 790 | 1 |
S450 - Carbon Stabilizer 450 | 1 |
FW900 - Fuselage 900 | 1 |
Socket Head Screws M6x20 and washers | 2 |
Flat Head Screw torx M6x35 | 1 |
Flat Head Screw torx M6x30 | 2 |
Flat Head Screw torx M6x20 | 1 |
Flat Head Screw torx M6x16 | 1 |
Grease, torx and hex tip | |
Instructions |


Compared to W633, W679 has higher lift speed, wider curve radius and better control at high speed.


One wing for 3 sports. The self controlled lift due to the advanced inverted gull wing design will give you a big smile while kiting, surfing or pumping


Great pumpability, surprisingly agile, very forgiving on breaching, great glide efficiency, all these features make the W950 a great light/medium freestyle wing for winging... and it's FAST!


The S450 is one of our big-wing stabilizer and will help you to pump better.


The S483 can be used with every wave wing in our collection and the downward tips allow you to shorten the turning radius with respect to S450 while keeping high the entering speed and releasing energy while pumping.

The aluminum tuttle to plate adaptor is designed to be assembled between wind mast and a board
