73950K
M73K - W950 - S483 - F753K

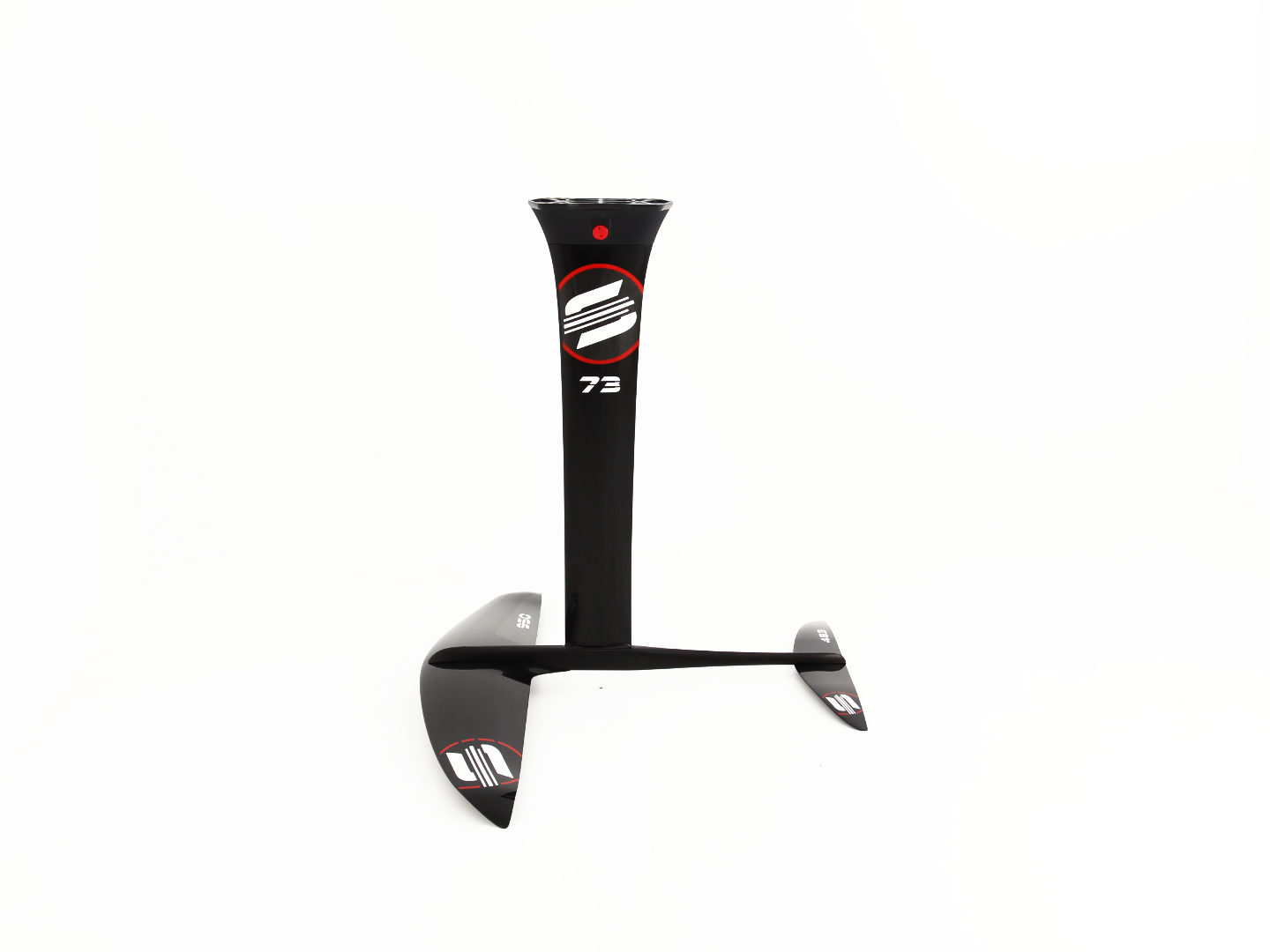

Hydrofoil Set - Kraken Modular System
Recommended for Beginners and Freeride
This kit is ideal for Wing-Foil, and in particular for beginners who wants to Freeride in light-moderate winds.
Thanks to the Kraken Modular System connection system, maximum compatibility with all components of the same SABFOIL range is guaranteed, so that you can upgrade your setup at any time, without any problems.
The kit consists of:
Mast: M73K - 730 mm
Front Wing: W950 - 1350 cm2
Stabilizer: S483 - 316 cm2
Fuselage: F753K - 753 mm
Mast Plate: P02K
It is possible to upgrade your kit thanks to the Quick Release System (Q01K) patented by SABFOIL and sold separately. Thanks to it you can assemble and disassemble your hydrofoil in a few seconds, avoiding at the same time losing the configuration on the board.
Dimensions & Advanced specs
| Mast - Height | 730 mm |
|---|---|
| Front Wing - Span | 950 mm |
| Front Wing - Surface | 1350 cm2 |
| Front Wing - Root Chord | 185 mm |
| Front Wing - Aspect Ratio | 6,6 |
| Stabilizer - Span | 483 mm |
| Stabilizer - Surface | 316 cm2 |
| Stabilizer - Root Chord | 85 mm |
| Stabilizer - Aspect Ratio | 7,6 |
| Fuselage - Length | 753 mm |
| Foil Set - Weight [±5%] | 4,29 kg |
| Board Connection Type | Plate |
Content
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
|---|---|
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
| M73K - Carbon Mast 73 cm | 1 |
|---|---|
| W950 - Front Wing 950 - 1350 cm2 | 1 |
| S483 - Stabilizer 483 - 316 cm2 | 1 |
| F753K - Fuselage 753 - Kraken Modular System | 1 |
| P02K - Mast Plate - Kraken Modular System | 1 |
| MH133 - Hardware Kit W940/W945/W950 | 1 |
| MH108 - Hardware Kit S425/S450/S483 | 1 |
| MH138 - Hardware Kit F703K/753K/903K/1003K | 1 |
| MH144 - Foam Pads for Plate - Kraken Modular System | 1 |
| Flat Head Screws Hex M8x30 | 4 |
| Conical Washers | 4 |
| MH137 - Allen Keys, Torx Key and Grease | 1 |
| MHW060 - Shims -0,5°/-1°/-1,5°/-2°/-2,5°/-3° | 1 |
