K72C633

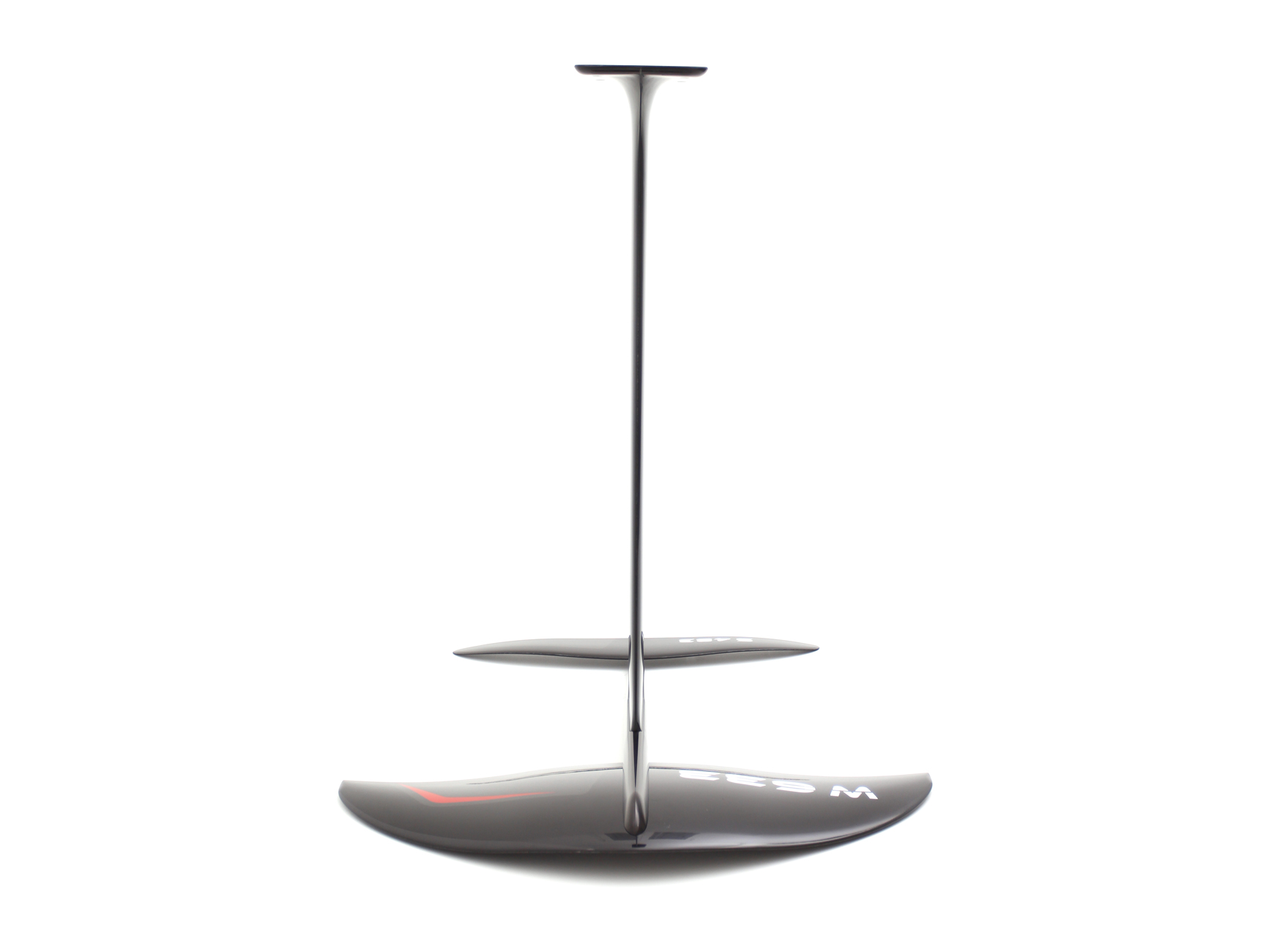

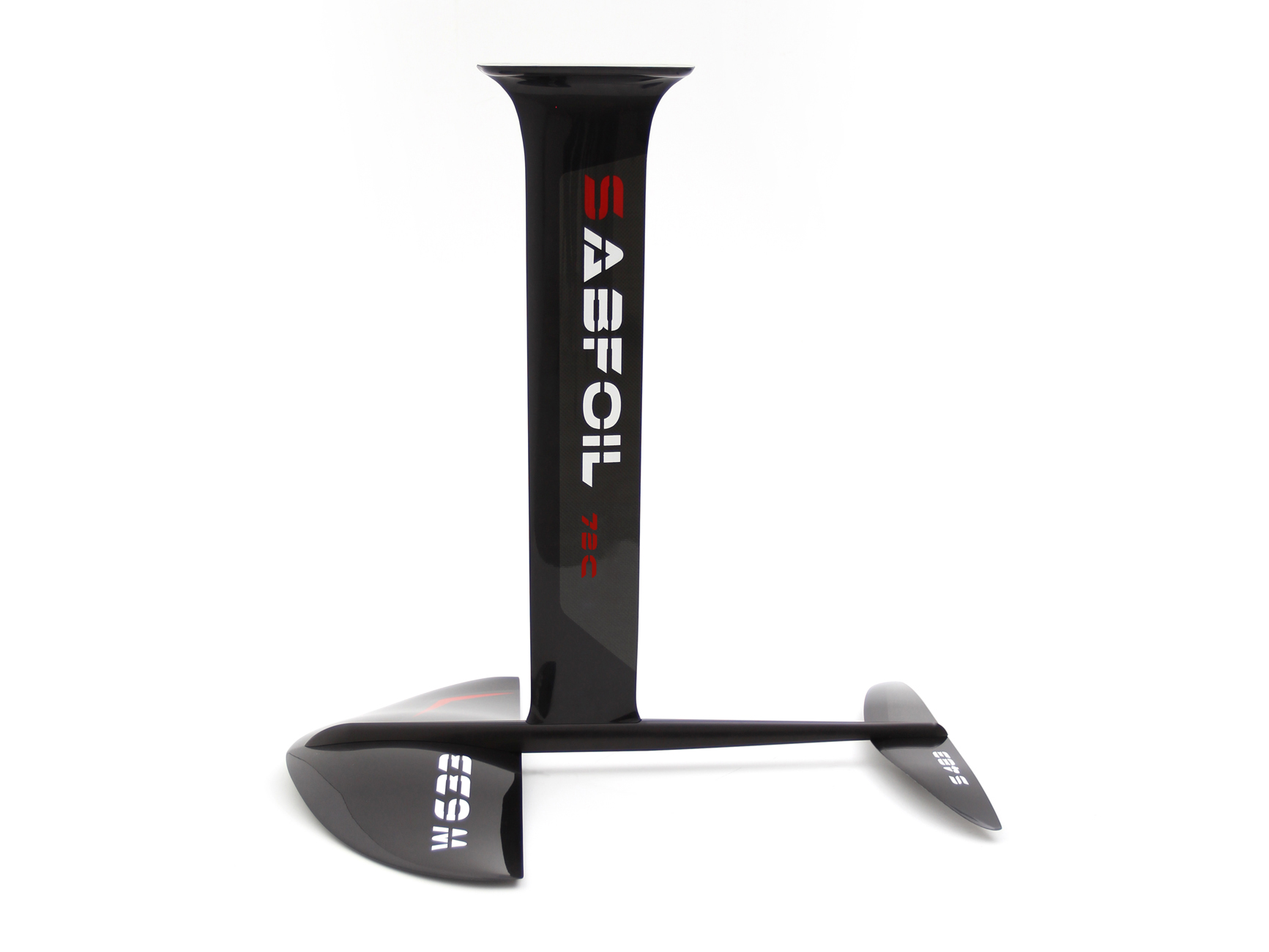

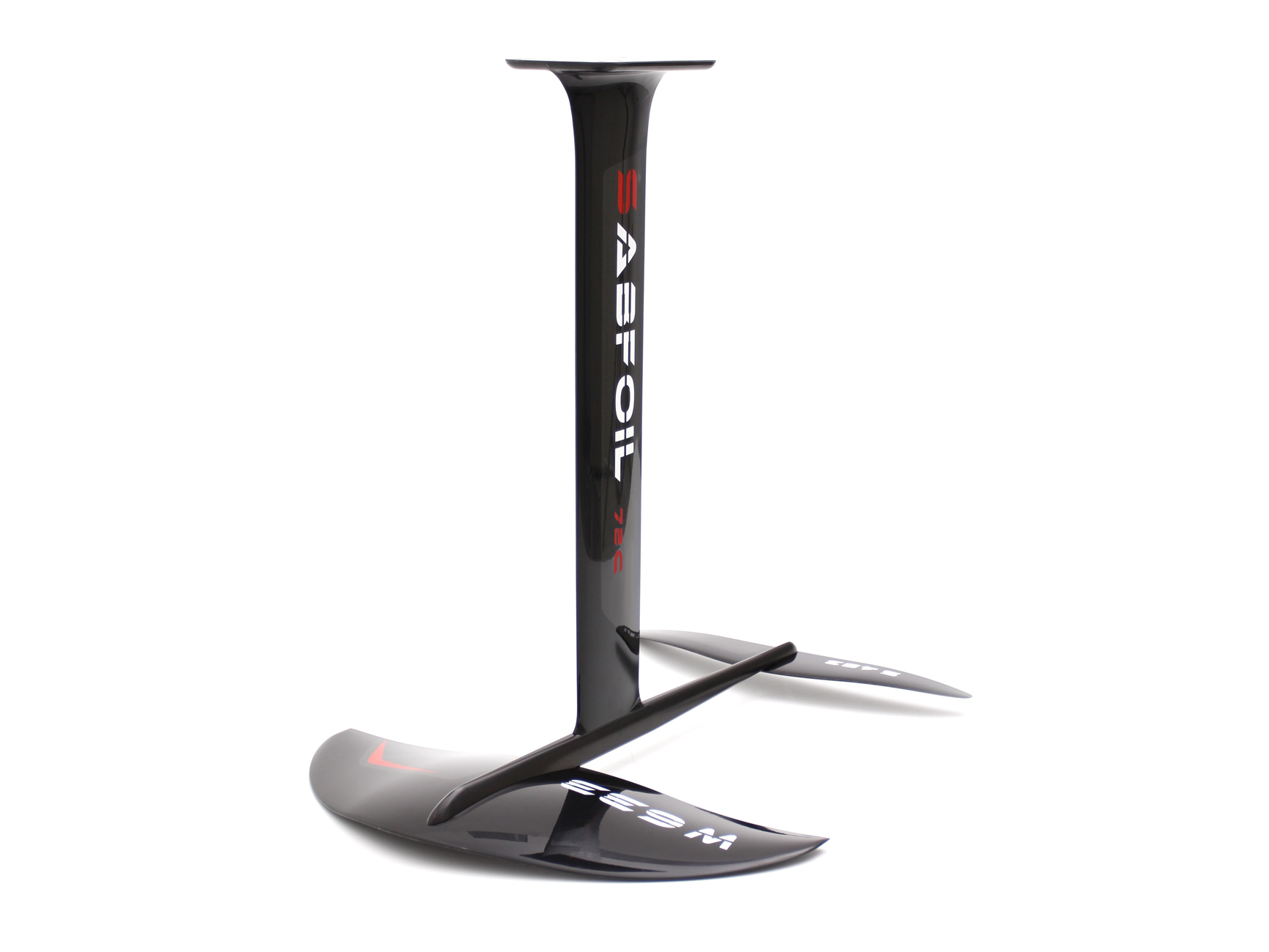

Kit M72C40 - W633 - S483 - FS710
The 633/483 combo is the choice for all those riders aiming to learn new maneuvers, surf small waves and progress their abilities.
The 633/483 combo is the choice for all those riders aiming to learn new maneuvers, surf small waves and progress their abilities.
The mast M72 C40 guarantees rigidity and precision in all kinds of maneuver.
This kit provides the performance of a carbon kit at a highly competitive price.
The profile of the mast guarantees high rigidity, inflex and torsion, allowing you to use the M72 C40 with the largest wings available on the market.
Always keep the threaded holes of the fuselage clean and lubricate them often using lithium grease (code MHW033) to avoid and prevent oxidation and corrosion due to seawater. Always clean your fuselage with fresh water after use

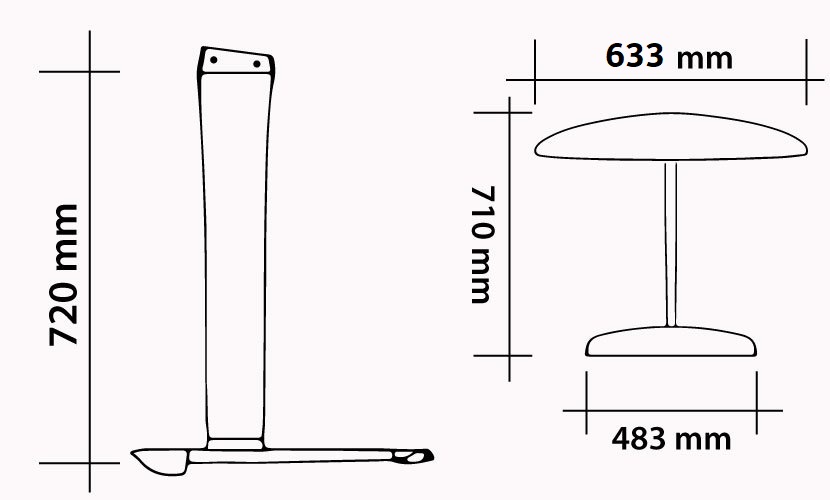

DIMENSIONS & ADVANCED SPECS
| Base Plate Joint | 90 x 165 mm |
|---|---|
| Mast Height | 72 cm |
| Front Wing Span | 633 mm |
| Front Wing Root Chord | 256 mm |
| Front Wing Aspect Ratio | 3.3 |
| Front Wing Surface | 1250 cm2 |
| Stabilizer Span | 483 mm |
| Stabilizer Root Chord | 85 mm |
| Stabilizer Aspect Ratio | 7.6 |
| Stabilizer Surface | 316 cm2 |
| Kit Weight | 3335 g [±5%] |
content
| M72C - Mast 72 cm - Plate | 1 |
|---|---|
| FS710 - Fuselage 710 | 1 |
| W633 - Front Wing 633 - 1250 cm2 | 1 |
| S483 - Stabilizer 483 - 316 cm2 | 1 |
| MH113 - 2 x Socket Head Cap Screws M6x25 and washers | 1 |
| MH108 - 1x Flat Head Screws Torx M6x20 and 1x M6x16 | 1 |
|---|---|
| MH114 - 3x Flat Head Screws Torx M6x30 | 1 |
| Grease, torx, hex tip | |
| Instructions |
| M72C - Mast 72 cm - Plate | 1 |
|---|---|
| FS710 - Fuselage 710 | 1 |
| W633 - Front Wing 633 - 1250 cm2 | 1 |
| S483 - Stabilizer 483 - 316 cm2 | 1 |
| MH113 - 2 x Socket Head Cap Screws M6x25 and washers | 1 |
| MH108 - 1x Flat Head Screws Torx M6x20 and 1x M6x16 | 1 |
| MH114 - 3x Flat Head Screws Torx M6x30 | 1 |
| Grease, torx, hex tip | |
| Instructions |

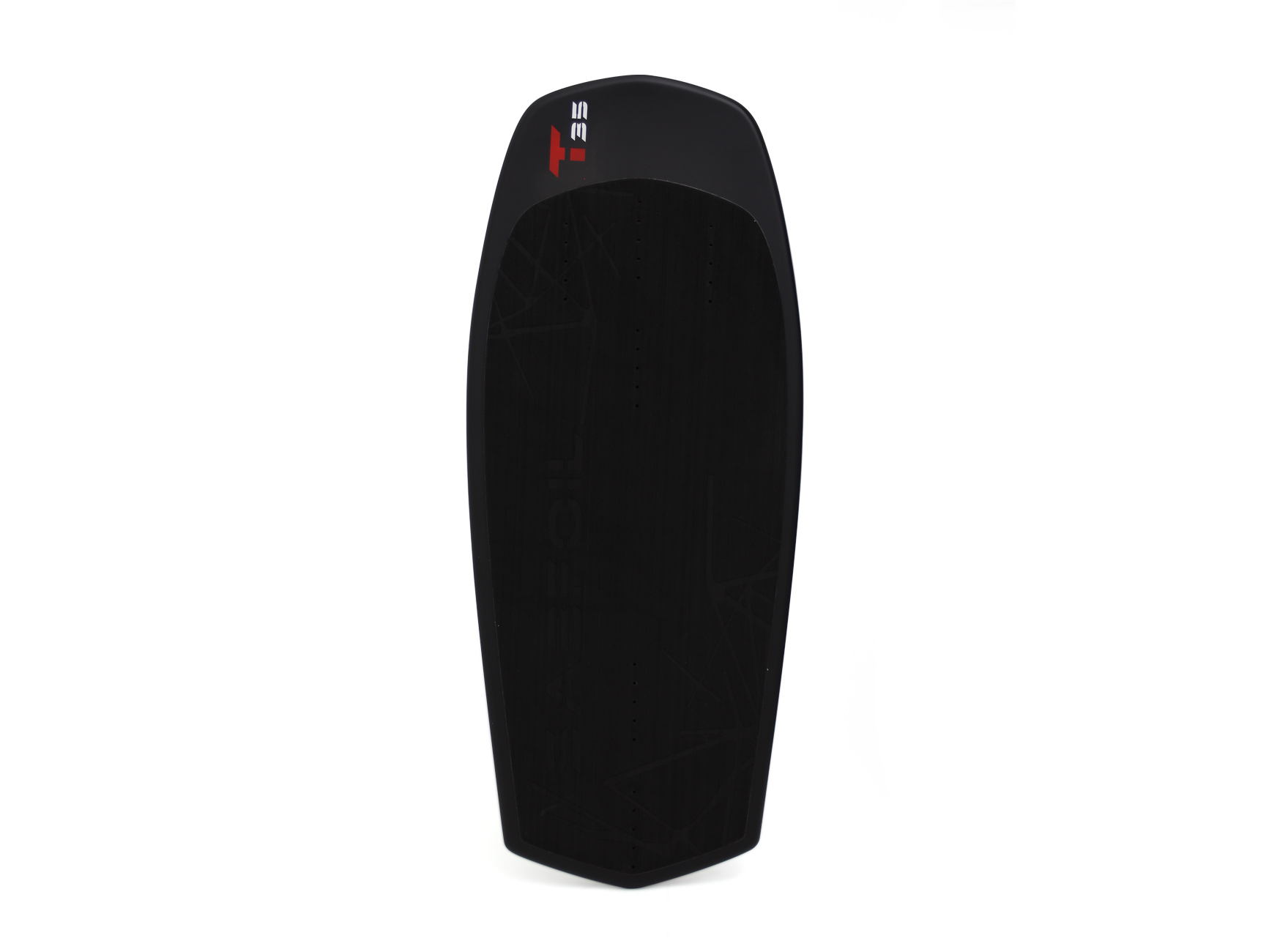

T35 is a full-carbon board, very portable, agile and with the advantage of the double rail system.
The T38 is a compact board intended for medium to expert foilers. The small dimensions of T38 make it ideal for freestyle use.
Very stable and perfectly balanced, the T98 makes your sessions more comfortable.
Ultra compact board developed by mb-boards and Balz Müller, it's easy to forget once in the air.
Its hull design, specific for each size, guarantees you an immediate takeoff.

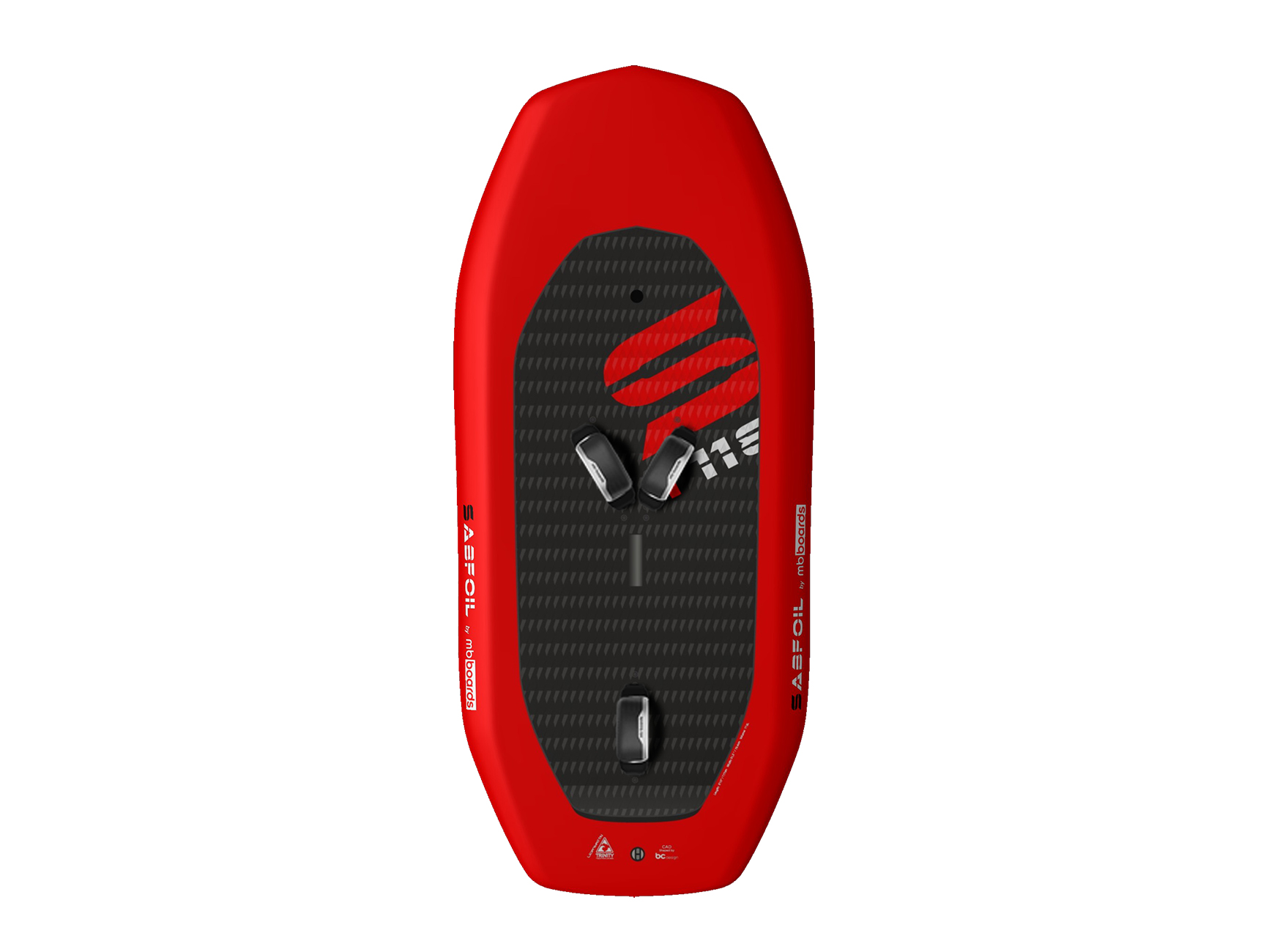

Very stable and perfectly balanced, the T118 makes your sessions more comfortable.
