V1071000

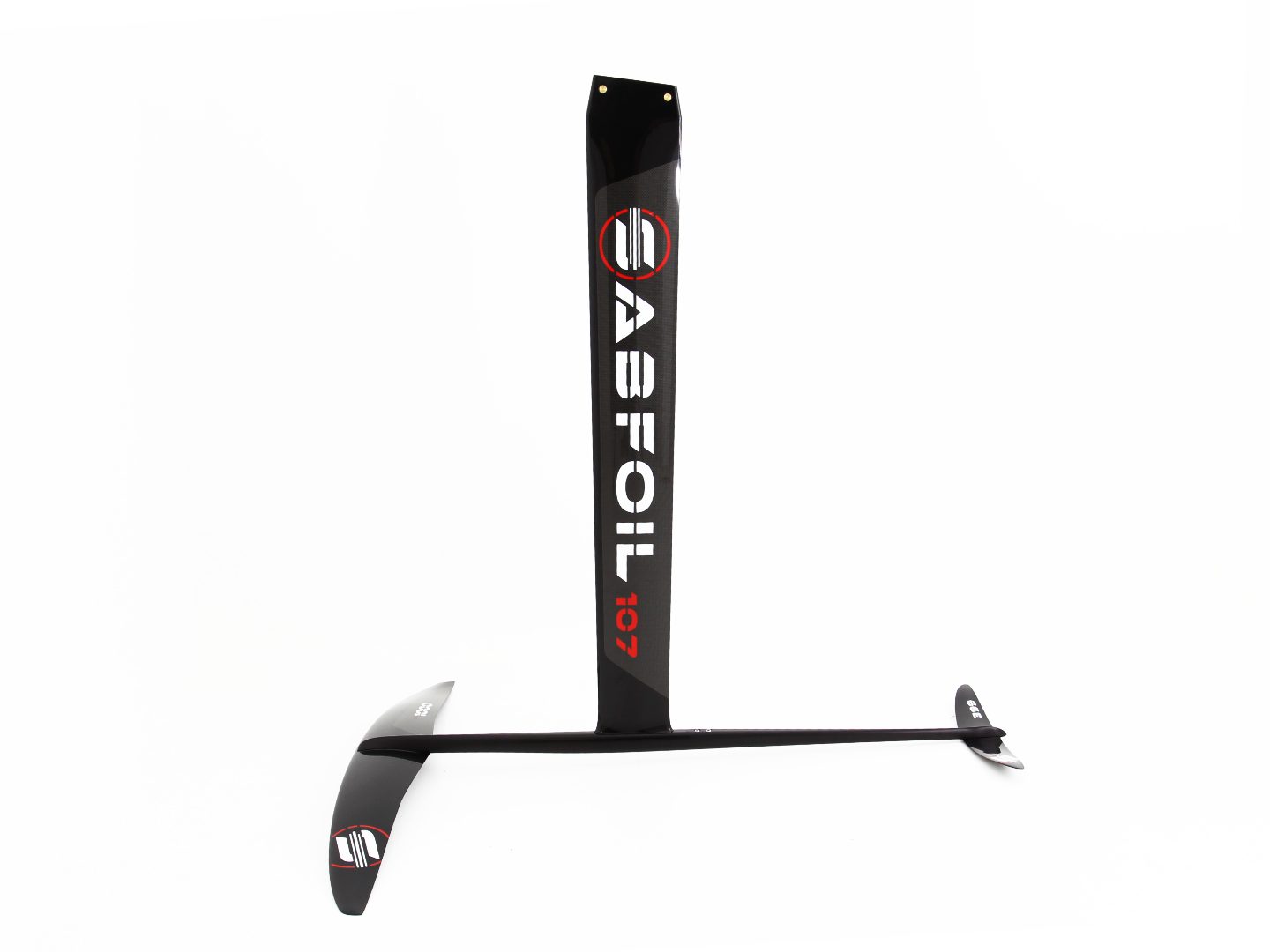

Kit MW107 - W1000 - S399 - FW1150 CARBON VENTO RACE



V1071000...The pinnacle of Sabfoil Windsurf Racing Division!

The pinnacle of Sabfoil Windsurf Racing Division: V1071000 is designed in collaboration with World Champion Luuc Van Opzeeland and is built to be one of the highest performing windsurf race foils.
Every part of this foil is designed to reduce drag and produce the best hydrodynamic performance. Each detail is precisely tuned to maximise the highest ratio speed/angle while avoiding ventilation.
This kit provides superior stability and control even at the highest speed.
Our use of high modulus and high resistance carbon has been optimised by virtual prototyping and physical testing to ensure the highest rigidity and torsion resistance.
Micro fractures on the mast caused by accidental collisions or by freestyle use of your race specific foil can cause the mast to break suddenly. For this reason, we recommend to check the mast carefully after a collision and avoid to jump with your Sabfoilrace foil



DIMENSIONS & ADVANCED SPECS

Mast Height | 1050 mm |
---|---|
Front Wing Span | 1000 mm |
Front Wing Root Chord | 135 mm |
Front Wing Aspect Ratio | 10,1 |
Front Wing Surface | 987 cm2 |
Stabilizer Span | 400 mm |
Stabilizer Root Chord | 64 mm |
Stabilizer Aspect Ratio | 7.73 |
Stabilizer Surface | 207 cm2 |
Mast Weight | 2,4 kg |
Board Connection | Deep Tuttle |
Fuselage Length | 1150 mm |
Fuselage Weight | 1851,50 gr |
Kit Weight | 5329 gr +/- 5% |
content
MW107 Carbon Mast 107 | 1 |
---|---|
W1000 Carbon Front Wing 1000 | 1 |
S399 Carbon Stabilizer | 1 |
FW1150 Fuselage 1150 | 1 |
Flat Head Screw M6x16mm | 2 |
Flat Head Screw torx M6x25mm | 3 |
---|---|
Socket Head Cap Screws M6x20 and washers | 8 |
Grease, torx, hex tip | |
Instructions |
MW107 Carbon Mast 107 | 1 |
---|---|
W1000 Carbon Front Wing 1000 | 1 |
S399 Carbon Stabilizer | 1 |
FW1150 Fuselage 1150 | 1 |
Flat Head Screw M6x16mm | 2 |
Flat Head Screw torx M6x25mm | 3 |
Socket Head Cap Screws M6x20 and washers | 8 |
Grease, torx, hex tip | |
Instructions |


The W671 has the same design as the IKA W670, so pure racing performances from the Sabfoil Racing Division.


Designed for windsurf slalom, this extremely fast wing will excite you while surfing.


The Race stabilizer that makes our W670 fast and stable. It can be used with all the kite wings and it will be a great addition to your set if you want push your performances.
