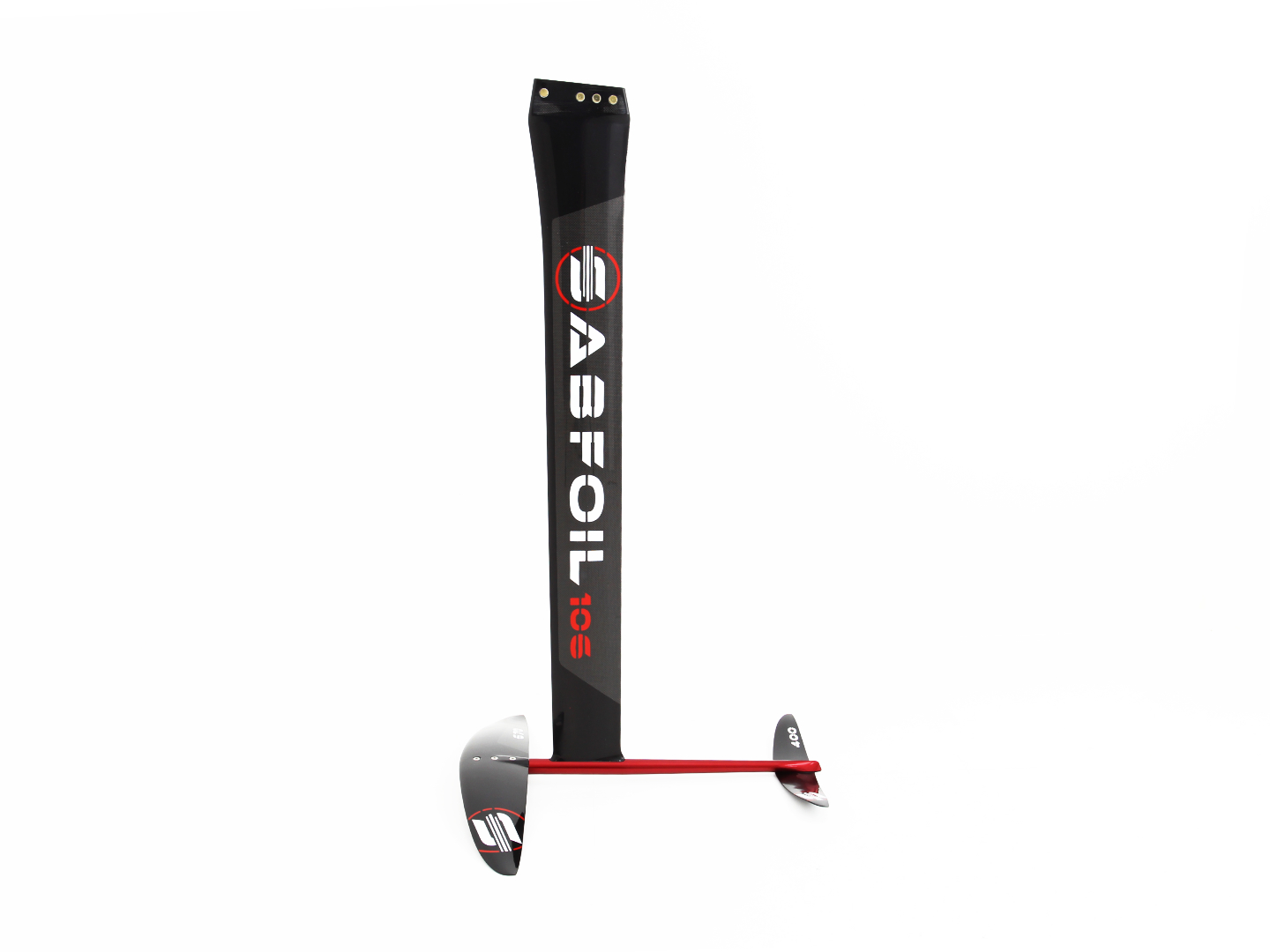

K106670400
Kit M106 - W670 - S400 - FKR604 - IKA REGISTERED
The pinnacle of Sabfoil Racing Division. The K106670400 is specifically designed and built for racing.

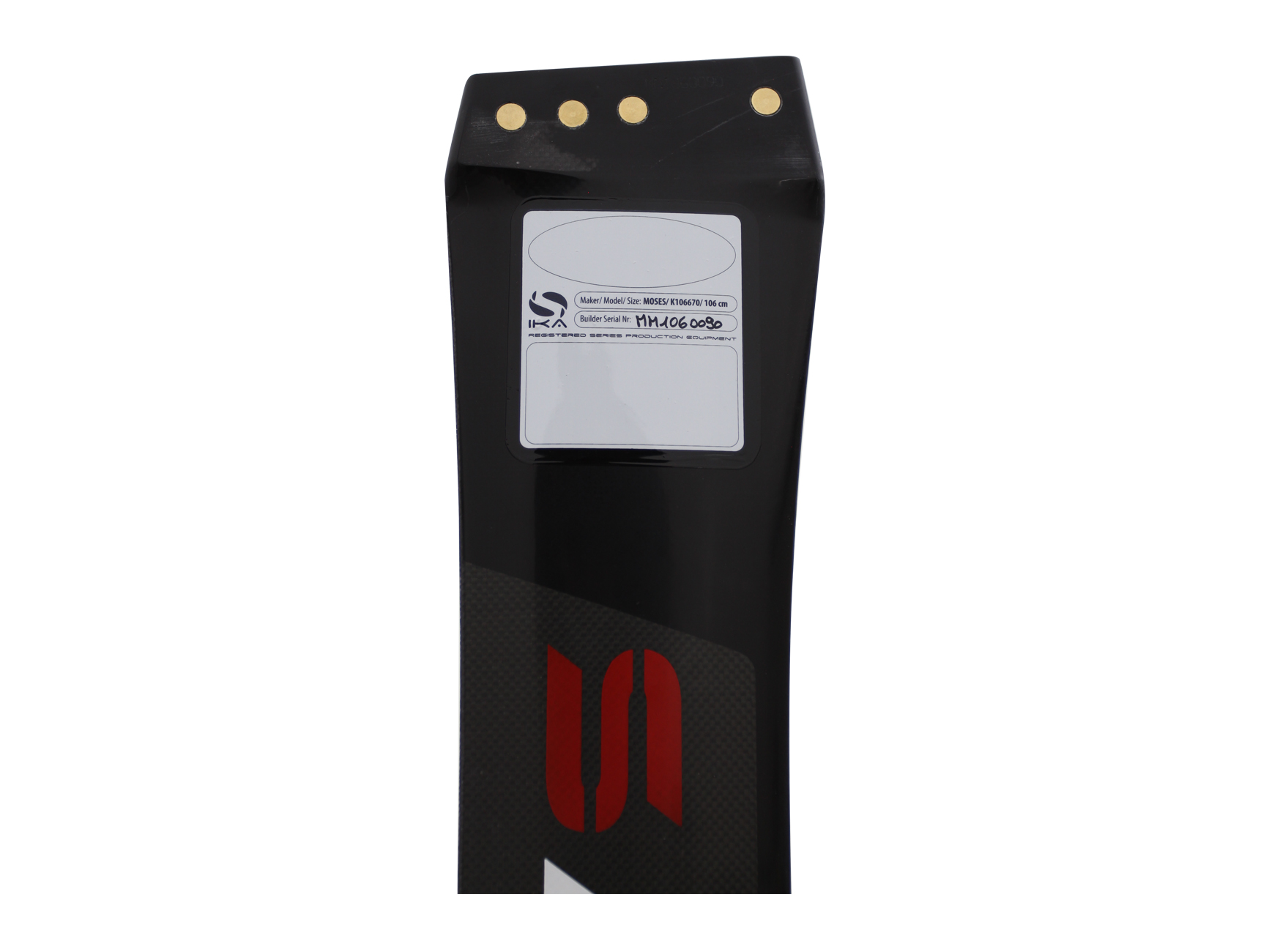

IKA Registered 2020/2024
The pinnacle of Sabfoil Racing Division. The K106670400 is specifically designed and built for racing.
K106670400 is IKA registered 2020/2024, thus every single component of the kit goes through two different quality and measurement checks to ensure that each produced foil has the same performances.
Every part of this foil is designed to reduce drag and to provide the best hydrodynamic performances. Each detail is precisely tuned to maximise the ratio speed/angle, while avoiding ventilation.
The use of high modulus carbon has been optimized both by virtual prototyping and physical tests to have a foil with maximum stiffness and torsional strength and minimum elongation.
The combo W670/S400 provides superior stability and control even at the highest speed.
IKA Registered 2020/2024
Micro-fractures on the mast caused by accidental collisions or by freestyle use of your race specific foil can cause the mast to break suddenly. For this reason, we recommend to check the mast carefully after a collision and avoid to jump with your Sabfoil race foil.
Bag for Hydrofoil
MA008
Out of stock
€119.00
Cover Front Wing 670/695/718/720
MA025
€28.00
Cover Mast 106 / W107
MA039
€36.00
Cover Stabilizer 400/421/450/483
MA037
Out of stock
€24.00
Stabilizer 421 mm Kite/Wind Race
S421
€290.00
Tuttle to Plate Adaptor Wind - Aluminum
MHW047
€199.00
White Lithium Grease
MHW033
€7.00
DIMENSIONS & ADVANCED SPECS
| Mast Height | 1060 mm |
|---|---|
| Front Wing Span | 670 mm |
| Front Wing Root Chord | 115 mm |
| Front Wing Aspect Ratio | 7.8 |
| Front Wing Surface | 570 cm2 |
| Stabilizer Span | 400 mm |
| Stabilizer Root Chord | 64 mm |
| Stabilizer Aspect Ratio | 7.73 |
| Stabilizer Surface | 207 cm2 |
| Mast Weight | 1.87 kg |
| Board Connection | Tuttle |
| Fuselage Length | 603,6 mm |
| Fuselage Weight | 600 gr |
| Kit Weight | 3186 gr +/- 5% |
content
| M106 Carbon Tuttle Mast 106 | 1 |
|---|---|
| W670 Carbon Front wing 670 kite race | 1 |
| S400 Carbon stabilizer 400 | 1 |
| FKR604 Fuselage 604 kite race | 1 |
| Flat Head Screws Torx M6x16 | 3 |
|---|---|
| Flat Head Screws Torx M6x20 | 4 |
| Instruction |
| M106 Carbon Tuttle Mast 106 | 1 |
|---|---|
| W670 Carbon Front wing 670 kite race | 1 |
| S400 Carbon stabilizer 400 | 1 |
| FKR604 Fuselage 604 kite race | 1 |
| Flat Head Screws Torx M6x16 | 3 |
| Flat Head Screws Torx M6x20 | 4 |
| Instruction |
Pure racing performances from the Sabfoil Racing Division.
IKA registered 2020/2024
New stabilizer from the Sabfoil Racing Division
IKA registered 2020/2024
The Race stabilizer that makes our W670 fast and stable. It can be used with all the kite wings and it will be a great addition to your set if you want push your performances.
